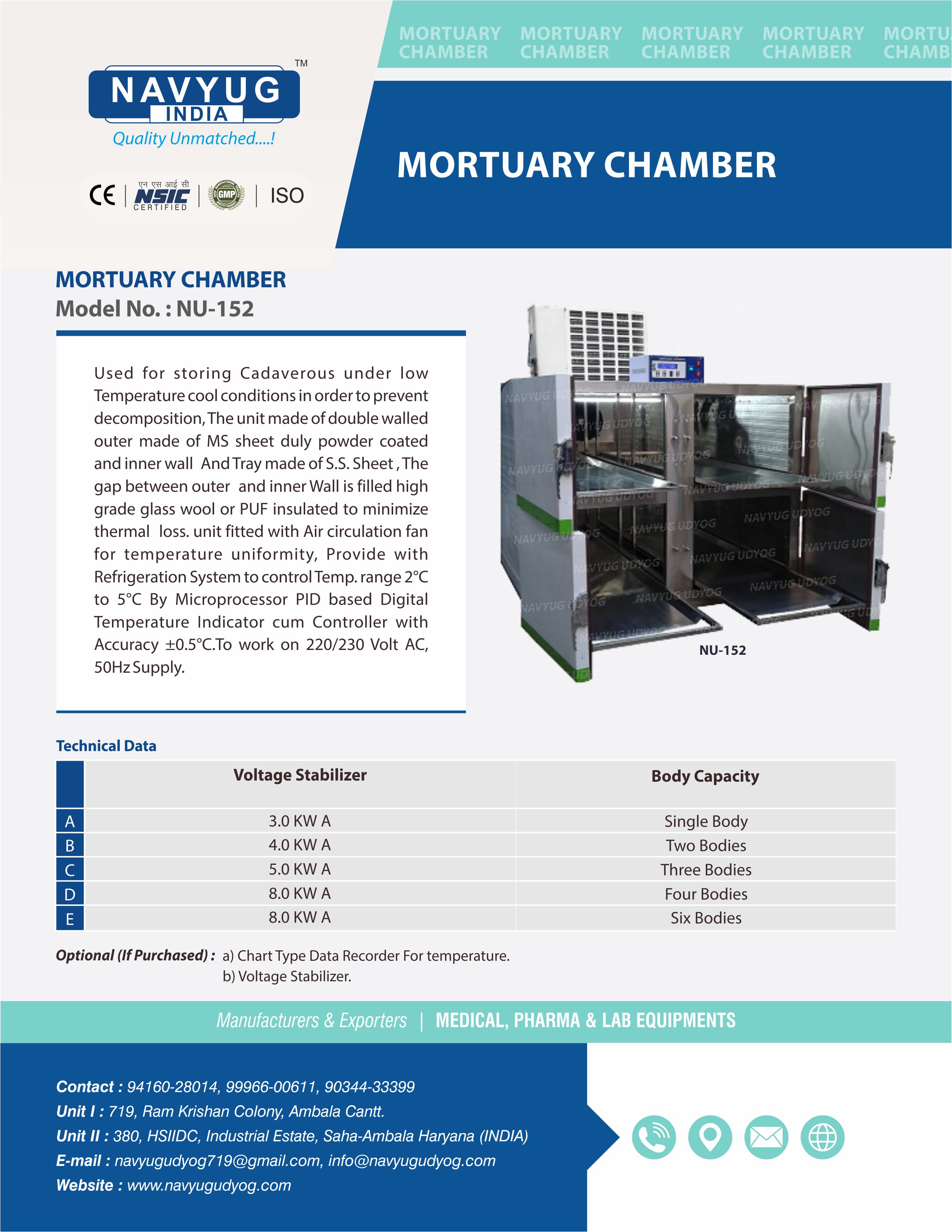

MORTUARY CHAMBER "NAVYUG" NU-152

Used for storing Cadaverous under low Temperature cool conditions in order to prevent decomposition, The unit made of double walled outer made of M S sheet duly powder coated and inner wall and Tray made of S.S. Sheet, The gap between outer and inner Wall is filled high grade glass wool or PUF insulated to minimize thermal loss. unit fitted with Air circulation fan for temperature uniformity, Provide with Refrigeration System  to control Temp. range 2°C to 5°C By Microprocessor PID based Digital Temperature Indicator cum Controller with Accuracy  ±0.5°C.To work on 220/230 Volt AC, 50Hz Supply.

Technical Specifications

      Model No.

Body Capacity

Voltage Stabilizer

      NU-152 A

Single Body

3.0 KW A

      NU-152 B

Two Bodies

4.0 KW A

      NU-152 C

Three Bodies

5.0 KW A

      NU-152 D

Four Bodies

8.0 KW A

      NU-152 E

Six Bodies

8.0 KW A

      Optional : a) Chart Type Data Recorder For temperature .
                          b) Voltage Stabilizer.
