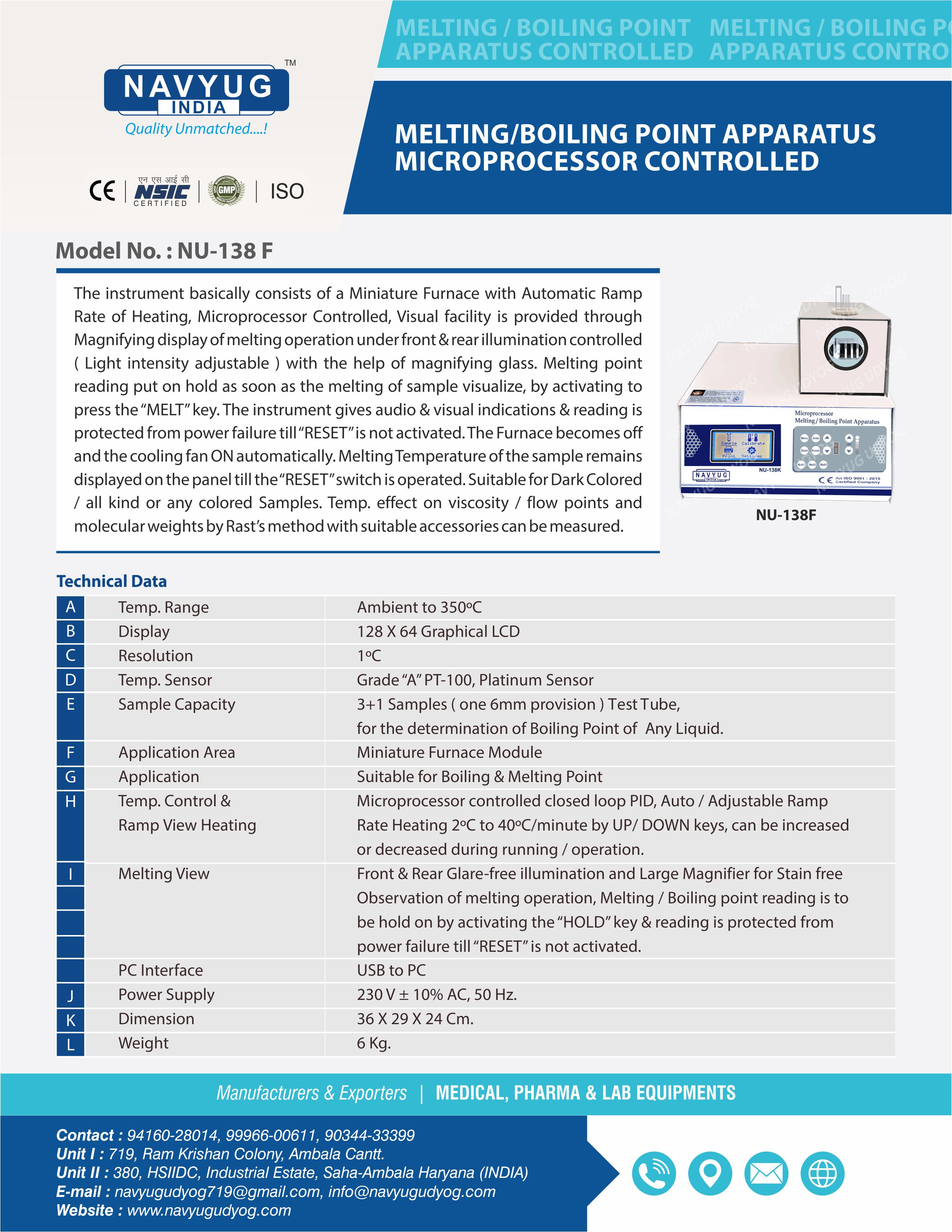

MELTING/BOILING POINT APPARATUS MICROPROCESSOR CONTROLLED (NU-138 F)
The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled ( Light intensity adjustable ) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key. The instrument gives audio & visual indications & reading is protected from power failure till “RESET” is not activated. The Furnace becomes off and the cooling fan ON automatically. Melting Temperature of the sample remains displayed on the panel till the “RESET” switch is operated. Suitable for Dark Colored / all kind or any colored Samples. Temp. effect on viscosity / flow points and molecular weights by Rast’s method with suitable accessories can be measured.
Technical Specifications |
| Temp. Range | Ambient to 350ºC |
| Display | 128 x 64 Graphical LCD |
| Resolution | 0.1ºC |
| Temp. Sensor | Grade “A” PT - 100, Platinum Sensor |
| Sample Capacity | 3 +1 Samples (one 6mm provision) Test Tube, for the determination of Boiling Point of Any Liquid. |
| Application Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Temp. Control & Ramp Rate Heating | Microprocessor controlled closed loop PID, Auto / Adjustable Ramp Rate Heating 2ºC to 40ºC/minute by UP/ DOWN keys, can be increased or decreased during running / operation |
| Melting View | Front & Rear Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| PC Interface | USB to PC |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 36 x 29 x 24 cm. |
| Weight | 6 Kg. |
