Product Details

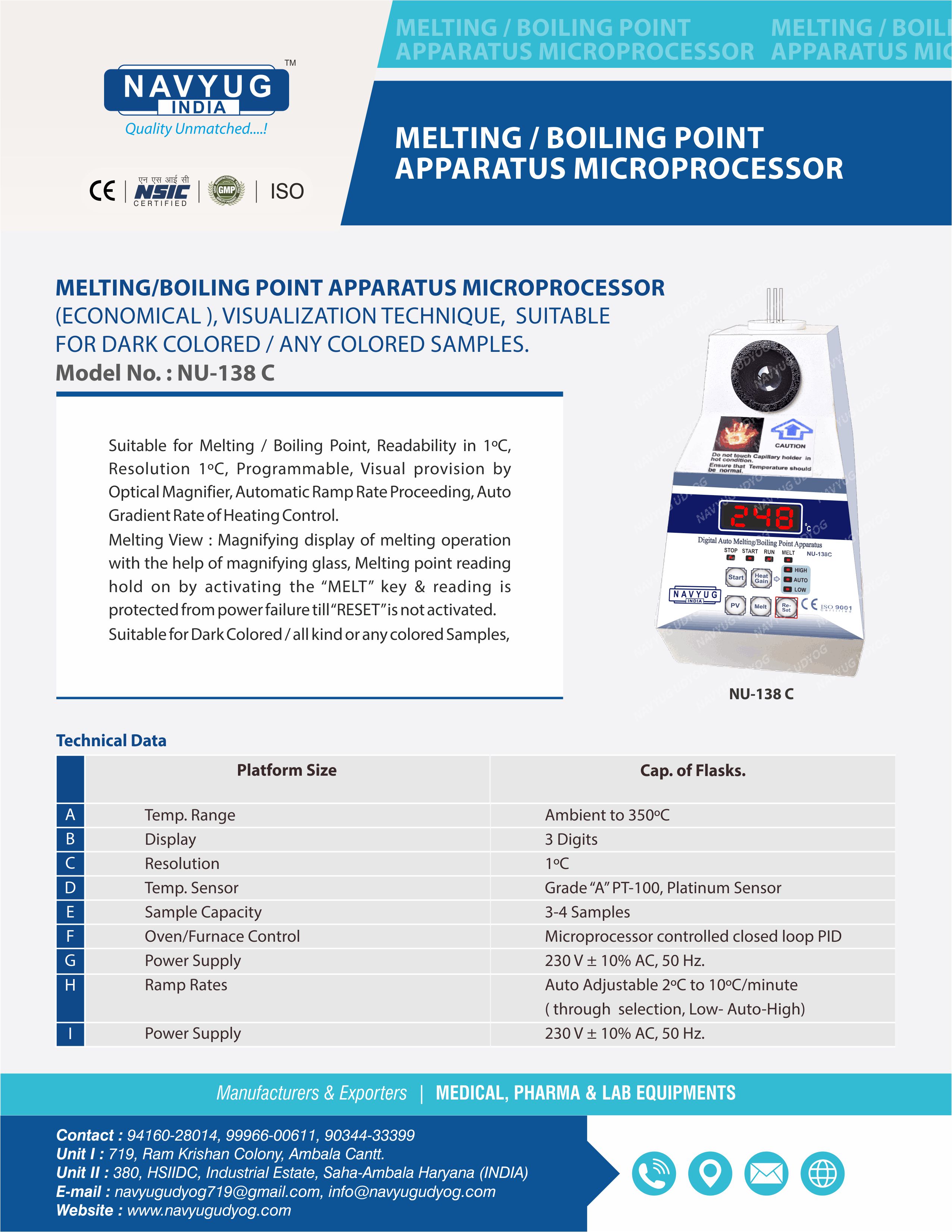

MELTING/BOILING POINT APPARATUS MICROPROCESSOR (NU-138 C)

All Models are Microprocessor Controlled. Automatic Ramp rate / PID technology. Auto gradient rate of heating control for high precision. “HOLD action (Melting Point Temp. achieved) is protected from power failure in all Models. Useful for Pharmaceutical Industry , Chemical / Plastic Industries etc. Suitable for Melting / Boiling Point, Readability in 1ºC, Resolution 1ºC, Programmable, Visual provision by Optical Magnifier, Automatic Ramp Rate Proceeding, Auto Gradient Rate of Heating Control. Melting View : Magnifying display of melting operation with the help of magnifying glass, Melting point reading hold on by activating the “MELT” key & reading is protected from power failure till “RESET” is not activated.

Technical Specifications

      Temp. Range                                                Ambient to 350ºC
      Display      3 Digits
      Resolution      1ºC
      Temp. Sensor      Grade “A” PT-100, Platinum Sensor
      Sample Capacity      3 - 4 Samples
      Oven/Furnace Control      Microprocessor controlled closed loop PID
      Power Supply      230 V ± 10% AC, 50 Hz.
      Ramp Rates      Auto Adjustable by  selection,  Low - Auto-High)
      Power Supply      230 V ± 10% AC, 50 Hz.
