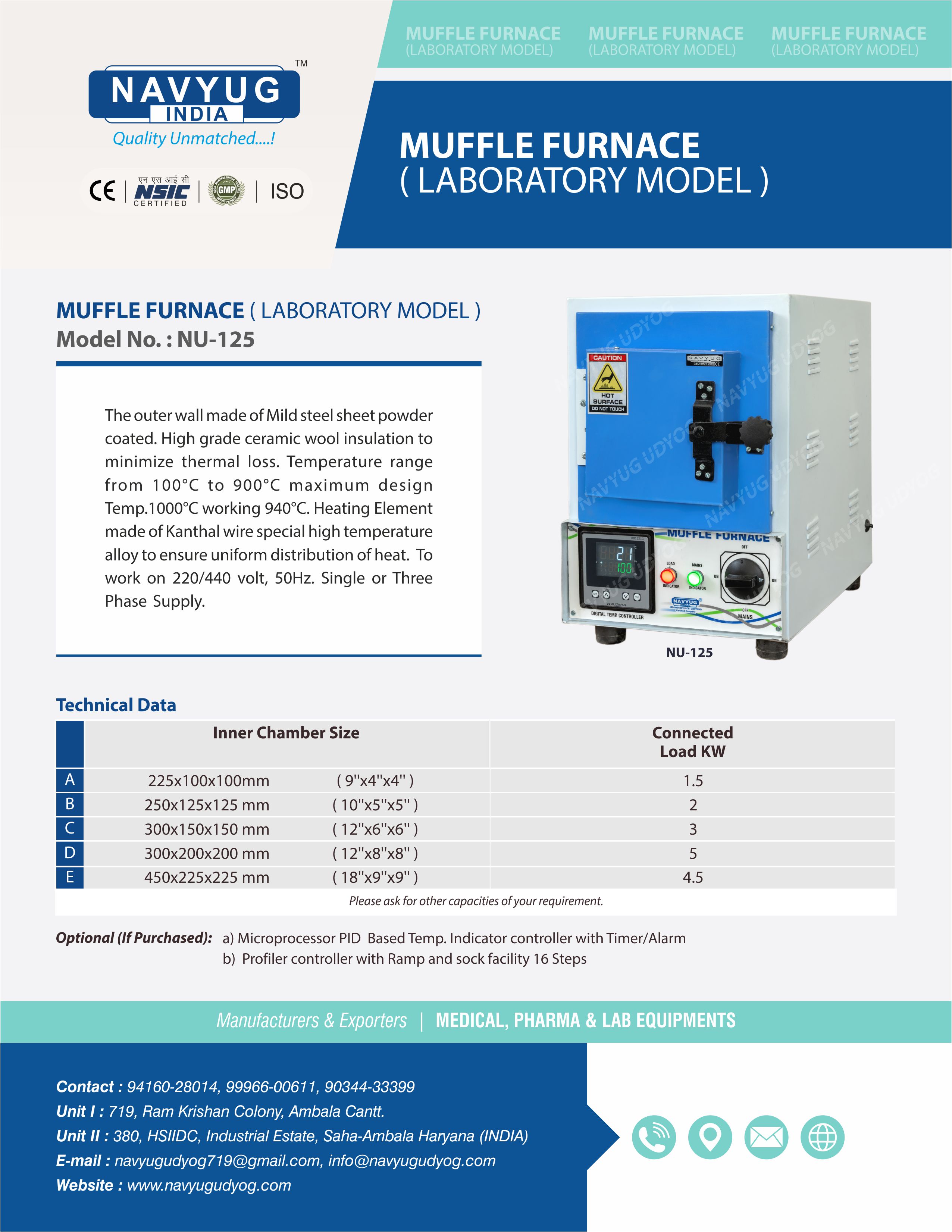

MUFFLE FURNACE (LABORATORY MODEL) "NAVYUG" NU-125
The outer wall made of Mild steel sheet powder coated. High grade ceramic wool insulation to minimize thermal loss. Temperature range from 100°C to 900°C maximum design Temp. 1000°C working 940°C. Heating Element made of Kanthal wire special high temperature alloy to ensure uniform distribution of heat. To work on 220/440 volt, 50Hz. Single or Three Phase Supply.
Technical Specifications | |||
| Model No. | Inner chamber size | Connected Load KW | |
| NU-125 A | 225 x 100 x 100 mm | (9" x 4" x 4") | 1.5 |
| NU-125 B | 250 x 125 x 125 mm | (10" x 5" x 5") | 2.0 |
| NU-125 C | 300 x 150 x 150 mm | (12" x 6" x 6") | 3.0 |
| NU-125 D | 300 x 200 x 200 mm | (12" x 8" x 8") | 5.0 |
| NU-125 E | 450 x 225 x 225 mm | (18" x 9" x 9") | 4.5 |
| Optional : PLC Controller with Data recording and Computer Output. | |||
