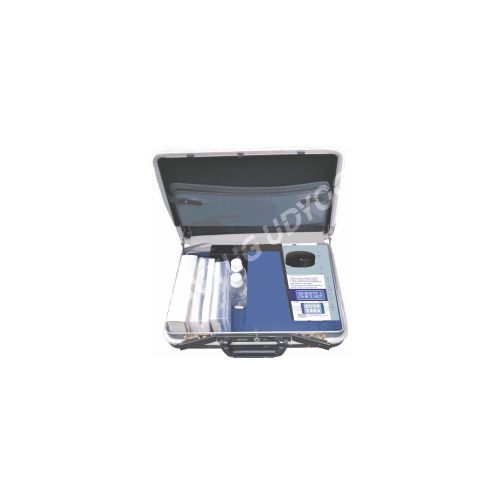

PORTABLE SOIL & WATER ANALYSER KIT ( NU-344 )
Technical Specification |
NU-344 A | NU-344 B | NU-344 C | NU-344 D |
Microprocessor 8 Parameter | Microprocessor 7 Parameter | Microprocessor 6 Parameter | Microprocessor 5 Parameter |
pH | pH | pH | pH |
mV ( ORP ) | mV ( ORP ) | mV ( ORP ) | mV ( ORP ) |
Cond. ( E.C. ) | Cond. ( E.C. ) | Cond. ( E.C. ) | Cond. ( E.C. ) |
T.D.S. | T.D.S. | T.D.S. | T.D.S. |
Temperature | Temperature | Temperature | Temperature |
D.O. | D.O. | D.O. | D.O. |
Salinity | Salinity | Salinity | Salinity |
Turbidity | Turbidity | Turbidity | Turbidity |
| Complete in Brief Case, portable, Battery cum Mains operated with Rechargeable Battery. |
| Storage : 1000 Samples with Date & Time, Interface : RS-232 or USB Error Indication : pH Error, buffer Error, ORP Error, Print Format : All Data - Date Wise |
ORP Electrode ( Platinum Electrode )
NOTE : ORP Electrode is optional for all the above models.
| General | Display : 16x2 Alphanumeric LCD, Operational Keys : Soft touch keys Power Supply: Mains cum Battery operated with rechargeable cell, at least 8 hours working after Single full recharge. Fitted in brief Case, Useful for field and as well as Laboratory use. Storage : 1000 Samples with Date & Time, Error Indication : pH Error, Buffer Error, ORP Error, PC Interface : RS-232, Real Time : 24 Hour Mode with Date. Print Format : All Data–Date Wise. |
| pH | Range : 0 to 14 pH, Resolution : 0.01 pH, Accuracy : 0.01 ± 1 Digit, Temp. Comp. : 0 to 100ºC Automatic (ATC), Slope Adjust.: 80% to 120% (Automatic), Auto pH Calibration : 5 points, Automatic 4.00, 7.00, 9.20, 10.50 & 12.45 pH |
| mV ( ORP ) | Range : 0 to ± 1999.9 mV, Resolution : 1 mV , Accuracy : ± 0.1 mV ± 1 Digit |
| Conductivity ( E.C. ) | Range : 0-20, 0-200uS & 0-2mS, 0-20mS, 0-1000mS Auto Ranging, Resolution : 0.1 uS, Accuracy : ± 0.5% FS ± 1 Digit, Cell Constant : Adjustable, Temp. Co.-Eff. : Adjustable between 0 to 4%, Temp. Comp. : Automatic for entire range, Reference Temp : Selectable (5º to 50º C) |
| T.D.S. | Range : 0-20, 0-200 ppm & 0-2 ppt, 0-20 ppt, 0-1000 ppt Auto Ranging, Resolution : 0.1 ppm, Accuracy : ± 0.5% FS ± 1 Digit, Cell Const. : Adjustable, Temp. Co.-Eff. : Adjustable between 0 to 4%, Temp. Comp. : Automatic for entire range, Reference Temp : Selectable (5º to 50º C) |
| Salinity | Range : 0 to 50 ppt, Resolution : 0.1 ppt, Accuracy : ± 2% of Range ± 1 Digit |
| Temperature | Range : 0ºC to 200ºC, Resolution : 0.1ºC, Accuracy : ± 0.1ºC ± 1 Digit, |
| Dissolved Oxygen | Range : 0 to 20 ppm, Resolution : 0.1 ppm, Accuracy : 0.1 ppm ± 1 Digit, |
| Turbidity / Nephelometer | Range : 0 to 200, 1000 NTU / JTU, Resolution : 0.1, 1 NTU / JTU, |
