Product Details

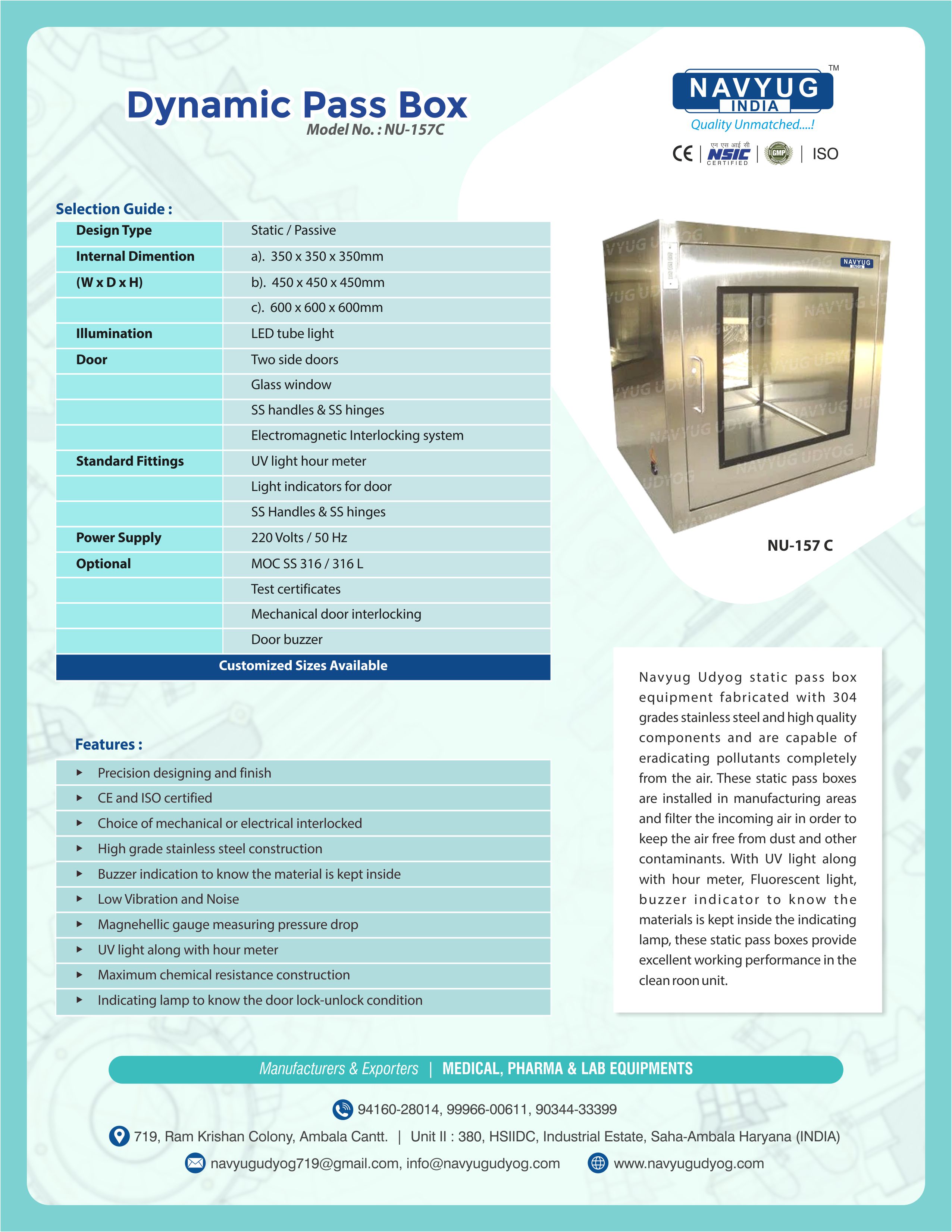

DYNAMIC PASS BOX GMP SERIES "NAVYUG" NU-157 C

Navyug Udyog static pass box equipment fabricated with 304 grades stainless steel and high quality components and are capable of eradicating pollutants completely from the air. These static pass boxes are installed in manufacturing areas and filter the incoming air in order to keep the air free from dust and other contaminants. With UV light along with hour meter, Fluorescent light, buzzer indicator to know the materials is kept inside the indicating lamp, these static pass boxes provide excellent working performance in the clean roon unit.

FEATURES

      >    Precision designing and finish      >    Low Vibration and Noise
      >    CE and ISO certified      >    Magnehelic gauge measuring pressure drop
      >    Choice of mechanical or electrical interlocked      >    UV light along with hour meter
      >    High grade stainless steel construction      >    Maximum chemical resistance construction
      >    Buzzer indication to know the material is kept inside      >    Indicating lamp to know the door lock-unlock condition



SELECTION GUIDE

      Design TypeStatic / Passive
      Internal Dimension (W x D x H)

      a)  350 x 350 x 350mm

      b)  450 x 450 x 450mm

      c)  600 x 600 x 600mm

      IlluminationLED tube light
      Door

      Two side doors

      Glass window

      SS handles & SS hinges

      Electromagnetic Interlocking system

      Standard Fittings

      UV light hour meter

      Light indicators for door

      SS Handles & SS hinges

      Power Supply220 Volts / 50 Hz
      Optional

      MOC SS 316 / 316 L

      Test certificates

      Mechanical door interlocking

      Door buzzer

Customized Sizes Available
