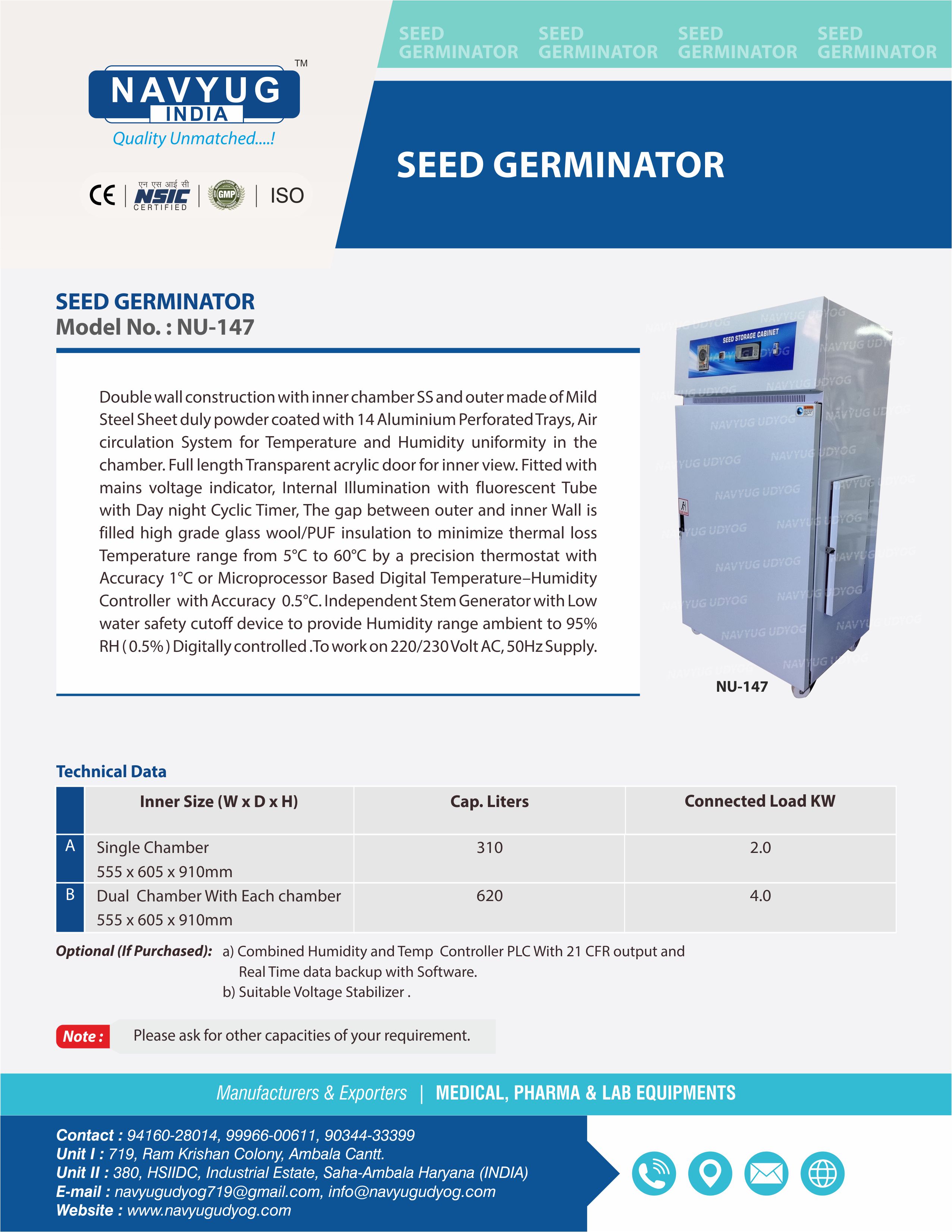

SEED GERMINATOR (NU–147)

Double wall construction with inner chamber SS and outer made of Mild Steel Sheet duly powder coated with 14 Aluminium Perforated Trays, Air circulation System for Temperature and Humidity uniformity in the chamber. Full length Transparent acrylic door for inner view. Fitted with mains voltage indicator, Internal Illumination with fluorescent Tube with Day night Cyclic Timer, The gap between outer and inner Wall is filled high grade glass wool/PUF insulation to minimize thermal loss Temperature range from 5°C to 60°C by a precision thermostat with Accuracy 1°C or Microprocessor Based Digital Temperature–Humidity Controller with Accuracy 0.5°C. Independent Stem Generator with Low water safety cutoff device  to provide Humidity range ambient to 95% RH (0.5%) Digitally controlled .To work on 220/230 Volt AC, 50Hz Supply.

Technical Specification

      Model No.

Inner Size ( W x D x H )mm

Capacity Liters

      NU-147 A

555 x 605 x 910
( Single Chamber )

310

      NU-147 B

555 x 605 x 910
( Dual Chamber With Each chamber )

620

      Optional : a) Combined Humidity and Temp  Controller PLC With 21 CFR output and Real Time data backup with Software
                          b) Suitable Voltage Stabilizer.
      Note : Please ask for other capacities of your requirement.
