Product Details

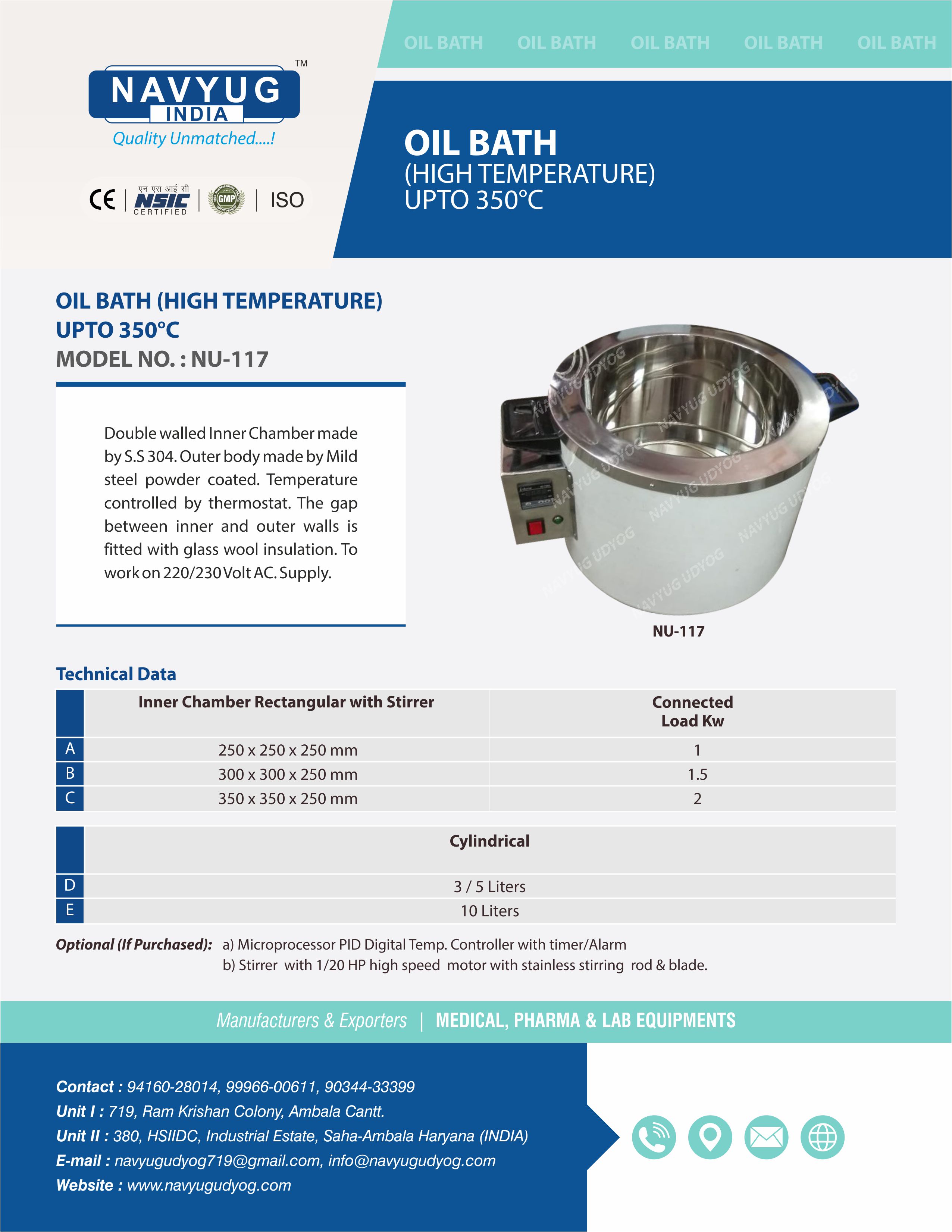

OIL BATH (HIGH TEMPERATURE) UPTO 350°C ( NU-117 )

Double walled Inner Chamber made by S.S 304. Outer body made by Mild steel powder coated. Temperature controlled by thermostat. The gap between inner and outer walls is fitted with glass wool insulation. To work on 220/230 Volt AC. Supply

Technical Specification

      Model No.

Inner Chamber
Rectangular with Stirrer

Connected Load
KW

      NU-117 A

250 x 250 x 250 mm

1.0

      NU-117 B

300 x 300 x 250 mm

1.5

      NU-117 C

350 x 350 x 250 mm

2.0

      Model No.

Inner Chamber Cylindrical

Connected Load
KW

      NU-117 D

3 / 5 Liters

2.0

      NU-117 E

10 Liters

3.0

      Optional : a) Microprocessor PID Digital Temp. Controller with timer/Alarm.
                          b) Stirrer with 1/20 HP high speed motor with stainless stirring rod & blade.
