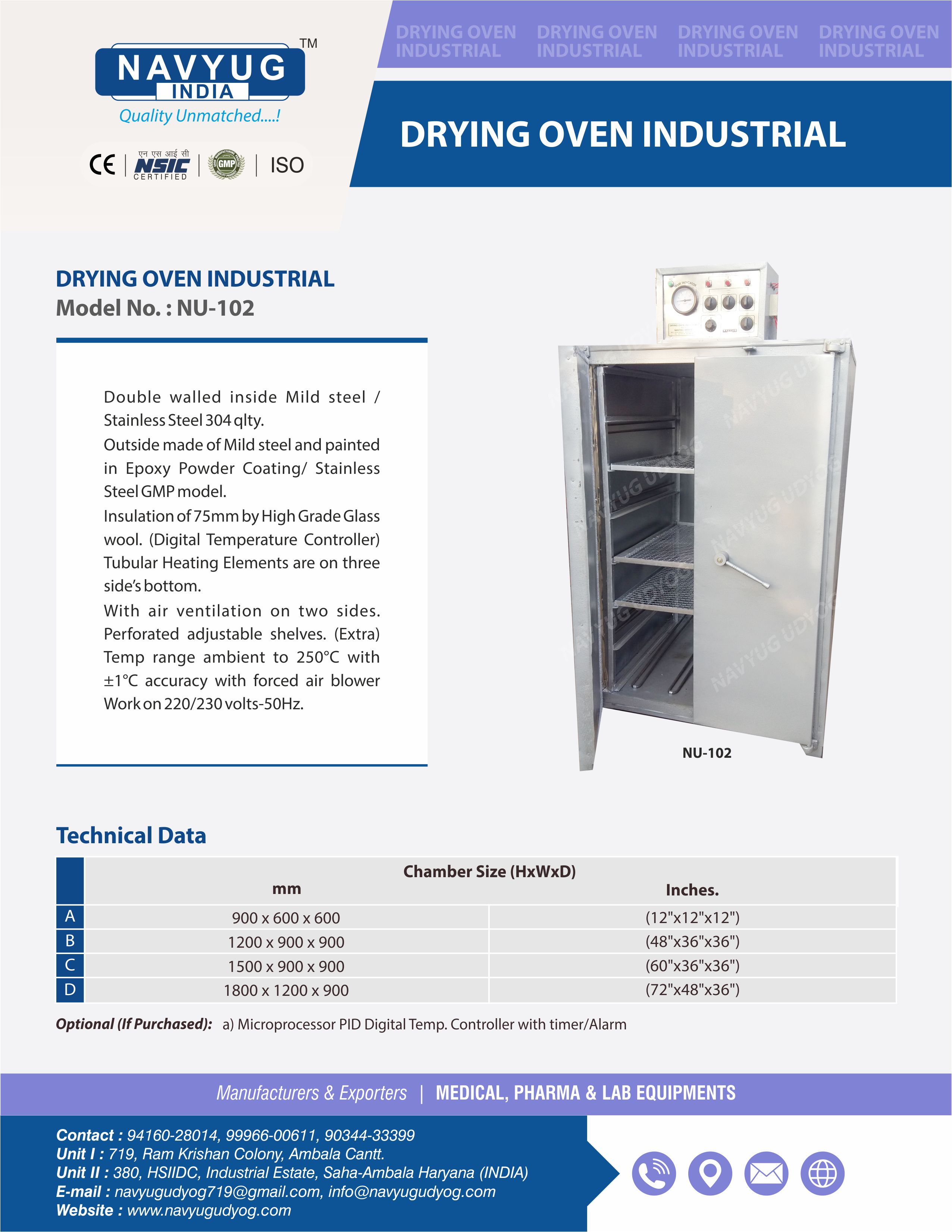

DRYING OVEN INDUSTRIAL ( NU-102 )
Double walled inside Mild steel/Stainless Steel 304 qity. Outside made of Mid steel and painted in Epoxy Powder Coating/ Stainless Steel GMP model. Insulation of 75mm by High Grade Glass wool. (Digital Temperature Controller) Tubular Heating Elements are on three side's bottom. With air ventilation on two sides. Perforated adjustable shelves. (Extra) Temp range ambient to 250°C with ±1°C accuracy with forced air blower Work on 220/230 volts-50Hz.
Technical Specification |
| Model No. | Chamber Size (H x W x D) mm Inches | |
| NU-102 A | 900 x 600 x 600 | 36” x 24” x 24” |
| NU-102 B | 1200 x 900 x 900 | 48” x 36” x 36” |
| NU-102 C | 1500 x 900 x 900 | 60” x 36” x 36” |
| NU-102 D | 1800 x 1200 x 900 | 72” x 48” x 36” |
| Optional : Microprocessor PID Digital Temp Controller with timer/Alarm. | ||
