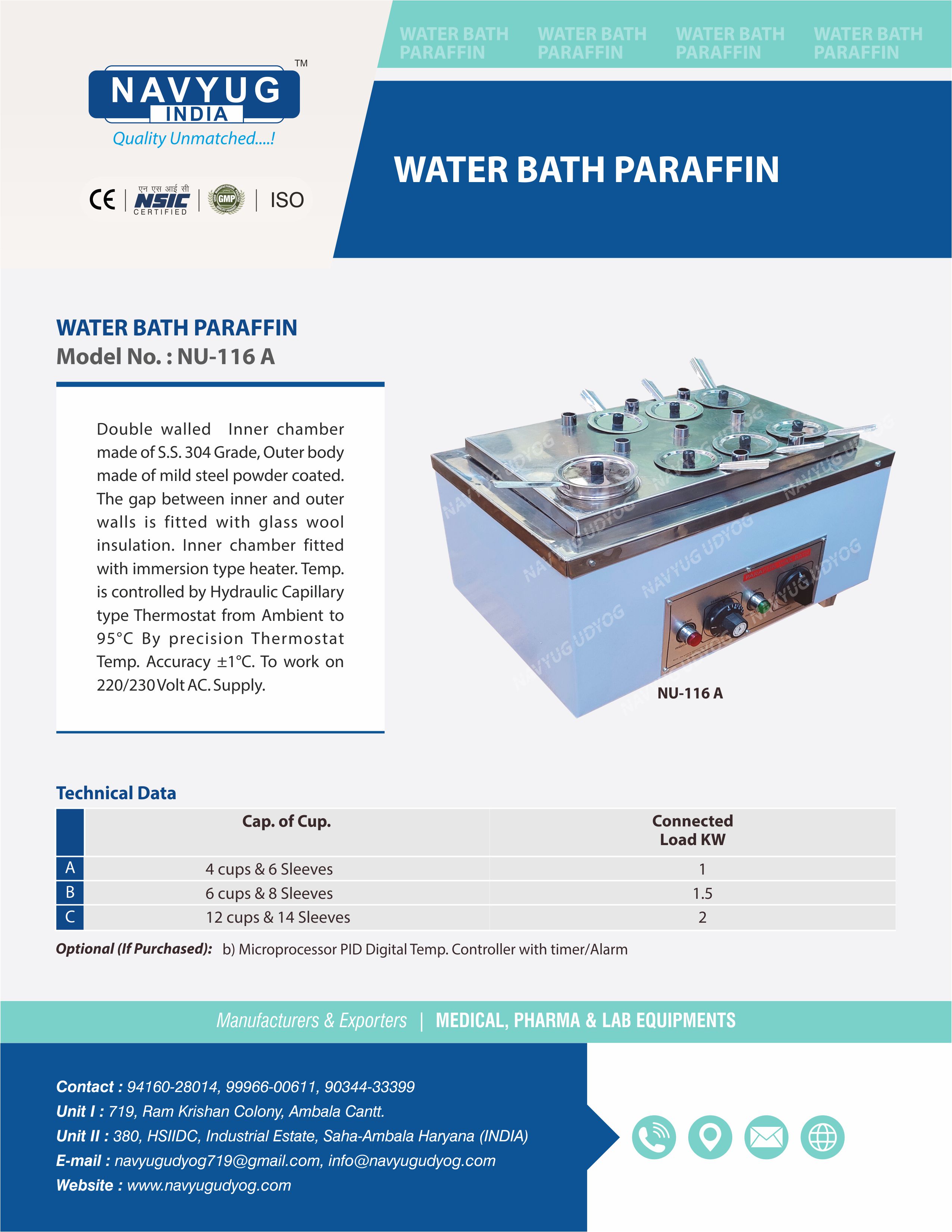

WATER BATH PARAFFIN ( NU-116 A )
Double walled Inner chamber made of S.S. 304 Grade, Outer body made of mild steel powder coated. The gap between inner and outer walls is fitted with glass wool insulation. Inner chamber fitted with immersion type heater. Temp. is controlled by Hydraulic Capillary type Thermostat from Ambient to 95°C By precision Thermostat Temp. Accuracy ±1°C. To work on 220/230 Volt AC. Supply.
Technical Specification |
| Model No. | Cap. of Cup. | Connected Load KW |
| NU-116 A (A) | 4 cups & 6 Sleeves | 1.0 |
| NU-116 A (B) | 6 cups & 8 Sleeves | 1.5 |
| NU-116 A (C) | 12 Cups & 14 Sleeves | 2.0 |
| Optional : Microprocessor PID Digital Temp. Controller with timer/Alarm. | ||
