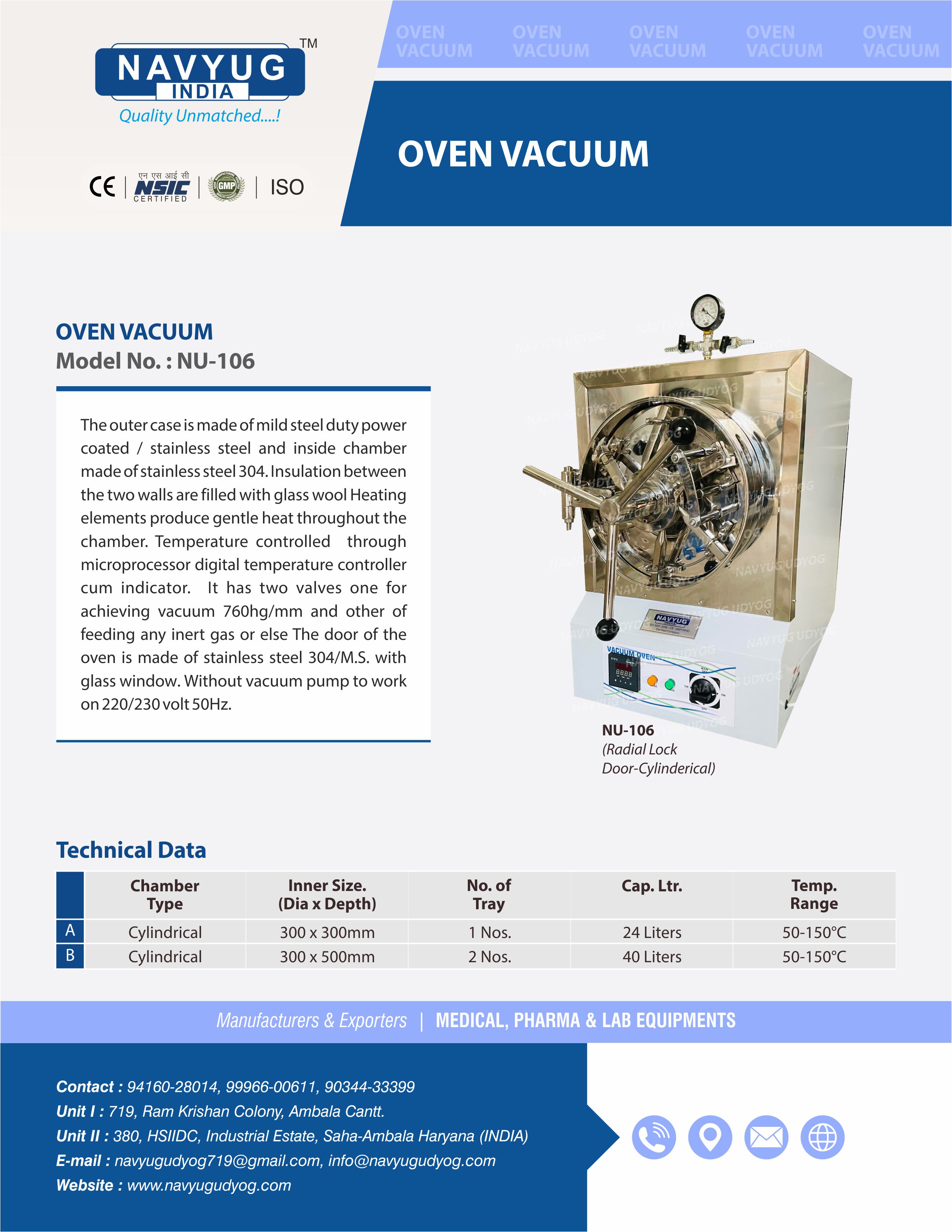

OVEN VACUUM CYLINDERICAL ( NU-106 )
The outer case is made of mild steel duty power coated / stainless steel and inside chamber made of stainless steel 304. Insulation between the two walls are filled with glass wool Heating elements produce gentle heat throughout the chamber. Temperature controlled through microprocessor digital temperature controller cum indicator. It has two valves one for achieving vacuum 760hg/mm and other of feeding any inert gas or else The door of the oven is made of stainless steel 304/M.S. with glass window. Without vacuum pump to work on 220/230 volt 50Hz.
Technical Specifications | ||||||
| Model No. | Chamber Type | Inner Size (H x W x D) | No. of Tray | Capacity Liters | Temp. Range | Connected Load KW |
| NU-106 A | Cylindrical | 300 × 300 | 1 Nos. | 24 | 50 - 150°C | 1.0 |
| NU-106 B | Cylindrical | 300 × 500 | 2 Nos. | 40 | 50 - 150°C | 1.5 |
| Optional : a) PLC controller with 21 CFR software and data recorder. b) Radial lock door for cylindrical vacuum oven. | ||||||
| Note : Please ask for other capacities of your requirement. GMP Model inner and outer ss complete also available. | ||||||
