Product Details

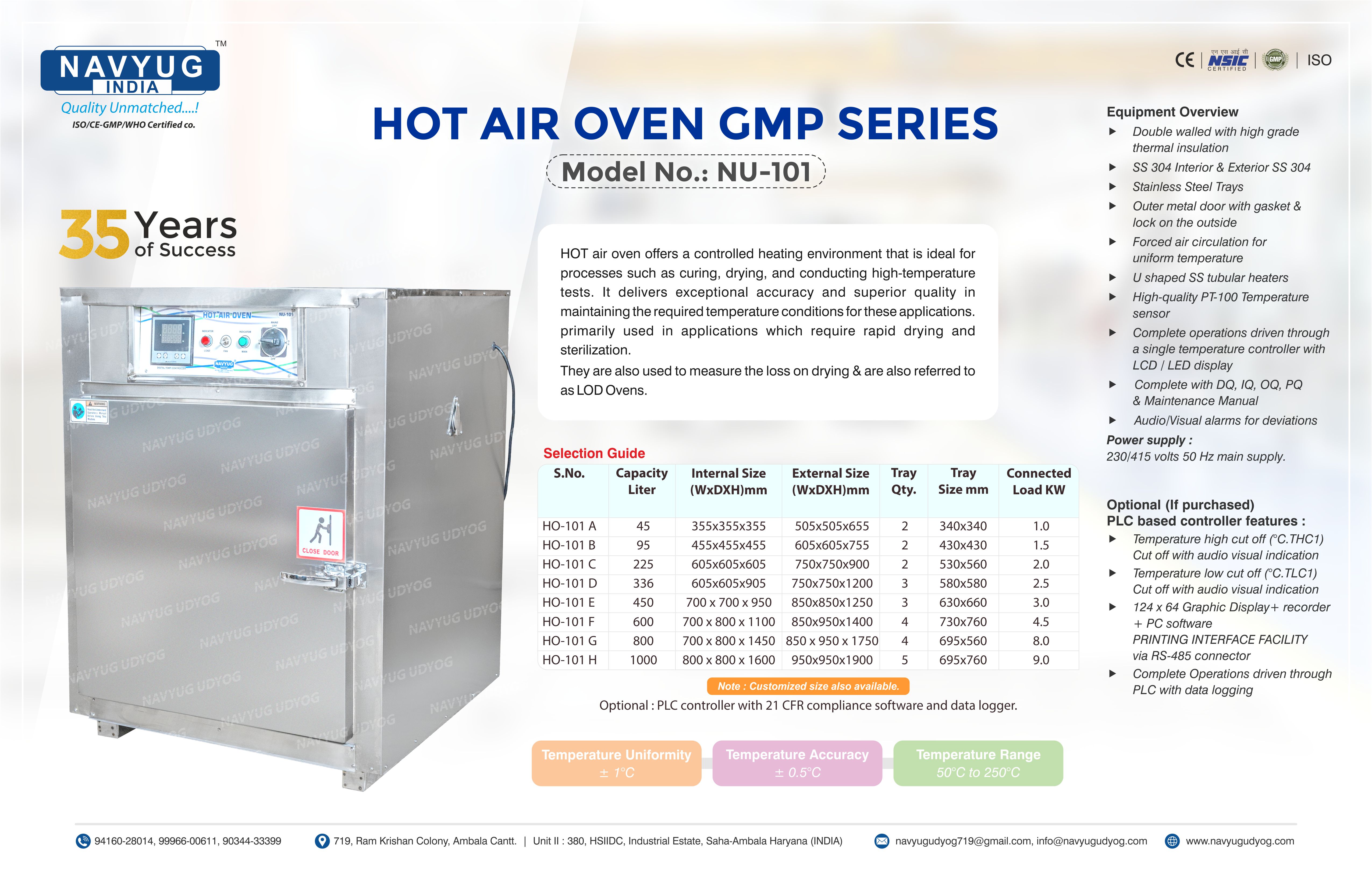

HOT AIR OVEN GMP SERIES "NAVYUG" NU-101

HOT air oven offers a controlled heating environment that is ideal for processes such as curing, drying, and conducting high-temperature tests. It delivers exceptional accuracy and superior quality in maintaining the required temperature conditions for these applications. primarily used in applications which require rapid drying and sterilization. They are also used to measure the loss on drying & are also referred to as LOD Ovens.

Temperature Uniformity ± 1°C  |  Temperature Accuracy ± 0.5°C  |  Temperature Range 50°C to 250°C

Equipment Overview

      Double walled with high grade thermal insulation          SS 304 Interior & Exterior SS 304
      High-quality PT-100 Temperature sensor      Stainless Steel Trays
      Complete operations driven through a single temperature controller with LCD / LED display      Outer metal door with gasket & lock on the outside
      Complete with DQ, IQ, OQ, PQ & Maintenance Manual      Forced air circulation for uniform temperature
      Audio/Visual alarms for deviations      U shaped SS tubular heaters
      Power supply : 230/415 volts 50 Hz main supply.



Optional (If purchased) PLC based controller features

      Temperature high cut off (°C.THC1) Cut off with audio visual indication
      124 x 64 Graphic Display+ recorder + PC software PRINTING INTERFACE FACILITY via RS-485 connector.
      Temperature low cut off (°C.TLC1) Cut off with audio visual indication
      Complete Operations driven through PLC with data logging



SELECTION GUIDE

    Model

Capacity Liter

Internal Size
( W x D x H )mm

External Size
( W x D x H )mm

Tray Qty.

Tray Size
mm

Connected
Load Watt

    101 A

45

355 x 355 x 355

505 x 505 x 655

2

340 x 340

1.0

    101 B

95

455 x 455 x 455

605 x 605 x 755

2

430 x 430

1.5

    101 C

225

605 x 605 x 605

750 x 750 x 900

2

530 x 560

2.0

    101 D

336

605 x 605 x 905

750 x 750 x 1200

3

580 x 580

2.5

    101 E

450

700 x 700 x 950

850 x 850 x 1250

3

630 x 660

3.0

    101 F

600

700 x 800 x 1100

850 x 950 x 1400

4

730 x 760

4.5

    101 G

800

700 x 800 x 1450

850 x 950 x 1750

4

695 x 560

8.0

    101 H

1000

800 x 800 x 1600

950 x 950 x 1900

5

695 x 760

9.0

Customized Sizes Available

Optional : PLC controller with 21 CFR compliance software and data logger.
