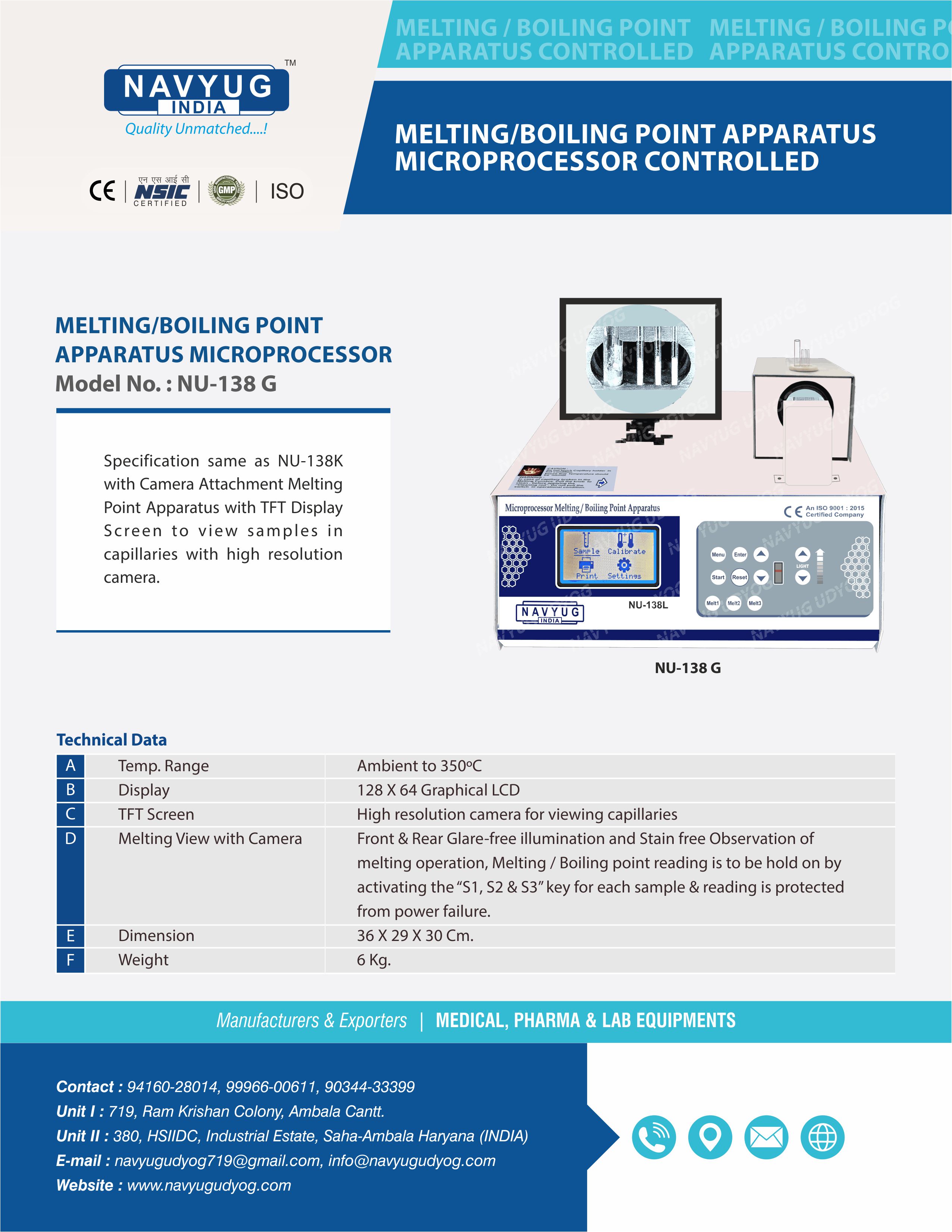

The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled ( Light intensity adjustable ) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key. The instrument gives audio & visual indications & reading is protected from power failure till “RESET” is not activated. The Furnace becomes off and the cooling fan ON automatically. Melting Temperature of the sample remains displayed on the panel till the “RESET” switch is operated. Suitable for Dark Colored / all kind or any colored Samples. Temp. effect on viscosity / flow points and molecular weights by Rast’s method with suitable accessories can be measured with Camera Attachment Melting Point Apparatus with TFT Display Screen to view samples in capillaries with high resolution camera.
Technical Specifications |
Temp. Range | Ambient to 350ºC |
Display | 128 X 64 Graphical LCD |
TFT Screen | High resolution camera for viewing capillaries |
Melting View with Camera | Front & Rear Glare-free illumination and Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “S1, S2 & S3” key for each sample & reading is protected from power failure. |
Size | 36 X 29 X 30cm. |
Weight | 6 Kg. |
