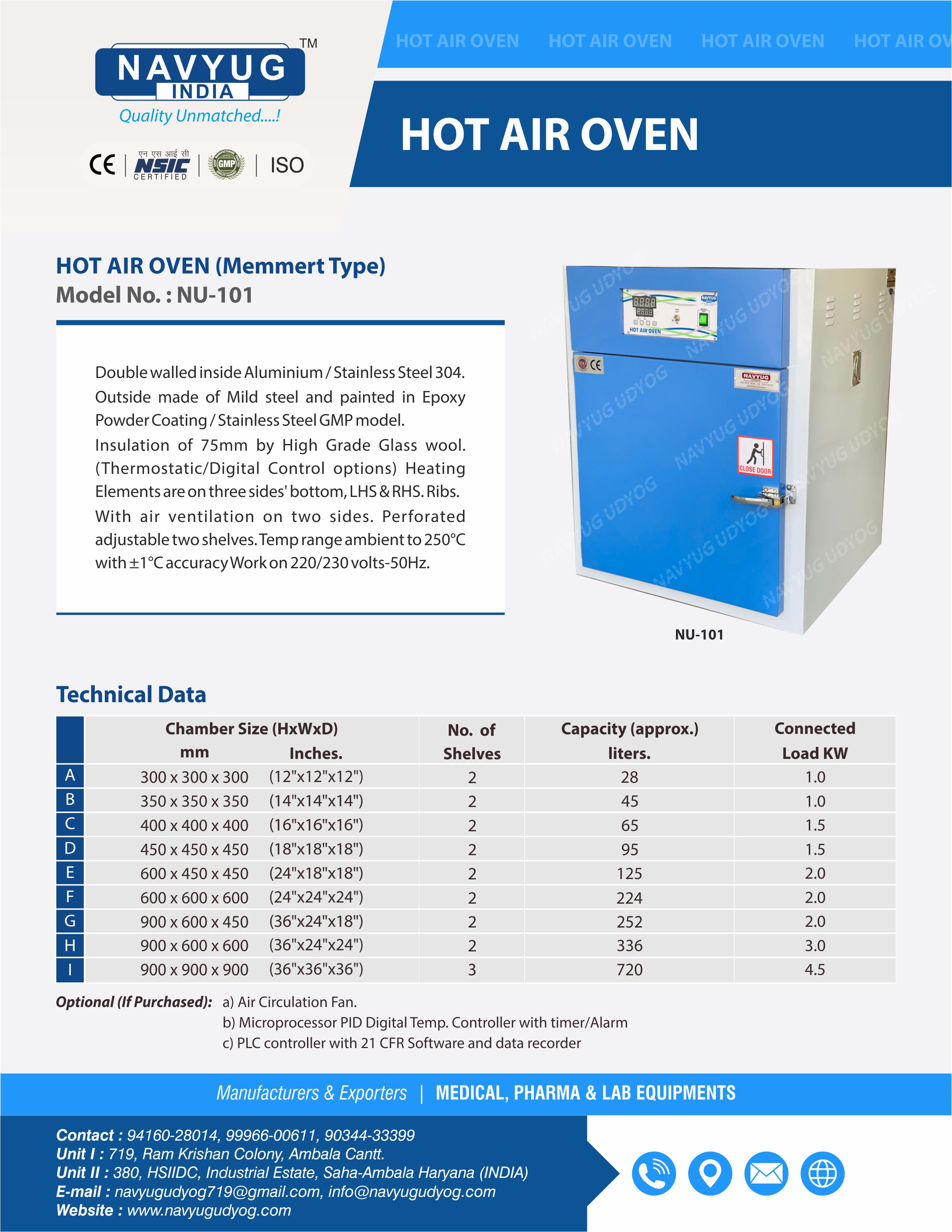

HOT AIR OVEN MEMMERT TYPE ( NU-101 )
Double walled inside Aluminium / Stainless Steel 304.
Outside made of Mild steel and painted in Epoxy Powder Coating/Stainless Steel GMP model.
Insulation of 75mm by High Grade Glass wool. (Thermostatic/Digital Control options)
Heating Elements are on three sides' bottom, LHS & RHS Ribs.
With air ventilation on two sides. Perforated adjustable two shelves.
Temp range ambient to 250°C with ±1°C accuracy Work on 220/230 volts-50Hz.
Technical Specifications |
| Model No. | Chamber Size ( H x W x D ) mm Inches | No. of | Capacity (approx.) | Connected | |
| NU-101 A | 300 x 300 x 300 | 12” x 12” x 12” | 2 | 28 | 1.0 |
| NU-101 B | 350 x 350 x 350 | 14” x 14” x 14” | 2 | 45 | 1.0 |
| NU-101 C | 400 x 400 x 400 | 16” x 16” x 16” | 2 | 65 | 1.5 |
| NU-101 D | 450 x 450 x 450 | 18” x 18” x 18” | 2 | 95 | 1.5 |
| NU-101 E | 600 x 450 x 450 | 24” x 18” x 18” | 2 | 125 | 2.0 |
| NU-101 F | 600 x 600 x 600 | 24” x 24” x 24” | 2 | 224 | 2.0 |
| NU-101 G | 900 x 600 x 450 | 36” x 24” x 18” | 2 | 252 | 2.0 |
| NU-101 H | 900 x 600 x 600 | 36” x 24” x 24” | 2 | 336 | 3.0 |
| NU-101 I | 900 x 900 x 900 | 36” x 36” x 36” | 3 | 720 | 4.5 |
| Optional : a) Air Circulation Fan. b) Microprocessor PID Digital Temp. Controller with timer/Alarm. c) PLC controller with 21 CFR Software and data recorder. | |||||
| Note : Please ask for other capacities of your requirement. GMP Model inner and outer ss complete also available. | |||||
