Product Details

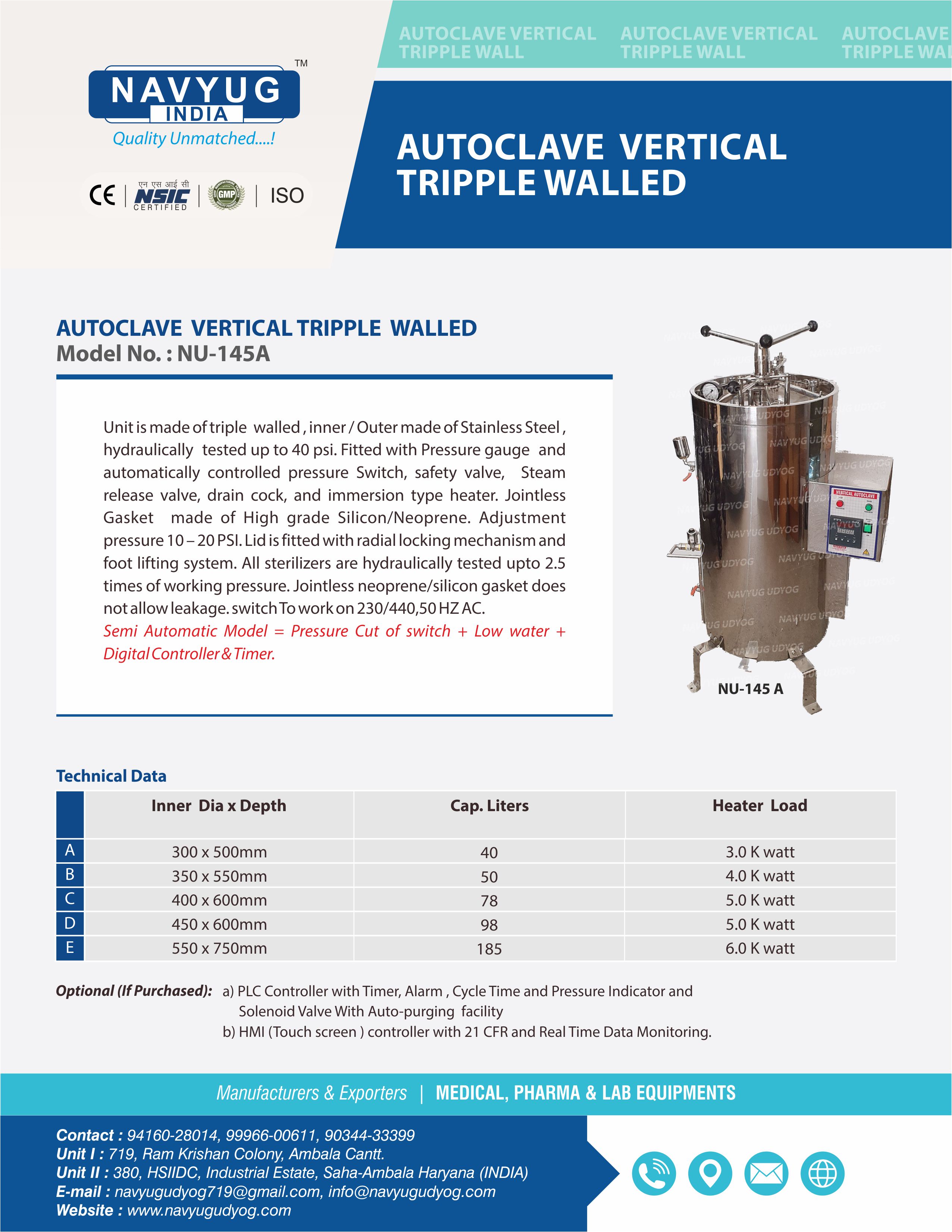

AUTOCLAVE VERTICAL TRIPPLE WALLED "NAVYUG" NU-145 A

Unit is made of triple walled, inner/Outer made of Stainless Steel, hydraulically tested up to 40 psi. Fitted with Pressure gauge and automatically controlled pressure Switch, safety valve, Steam release valve, drain cock, and immersion type heater. Jointless Gasket made of High grade Silicon/Neoprene. Adjustment pressure 10-20 PSI. Lid is fitted with radial locking mechanism and foot lifting system. All sterilizers are hydraulically tested upto 2.5 times of working pressure. Jointless neoprene/silicon gasket does not allow leakage. switch To work on 230/440, 50 HZ.

Technical Specifications

      Model No.

Inner Dia. x Depth

Capacity Liters

Connected Load KW

      NU-145 A (A)

300 x 500 mm

40

3.0

      NU-145 A (B)

350 x 550 mm

50

4.0

      NU-145 A (C)

400 x 600 mm

78

5.0

      NU-145 A (D)

450 x 600 mm

98

5.0

      NU-145 A (E)

550 x 750 mm

185

6.0

      Optional : a) PLC Controller with Timer, Alarm, Cycle Time and Pressure Indicator and Solenoid Valve With Auto-purging  facility
                          b) HMI (Touch screen) controller with 21 CFR and Real Time Data Monitoring.
      Note : Please ask for other capacities of your requirement.
                  Customize size also available.
