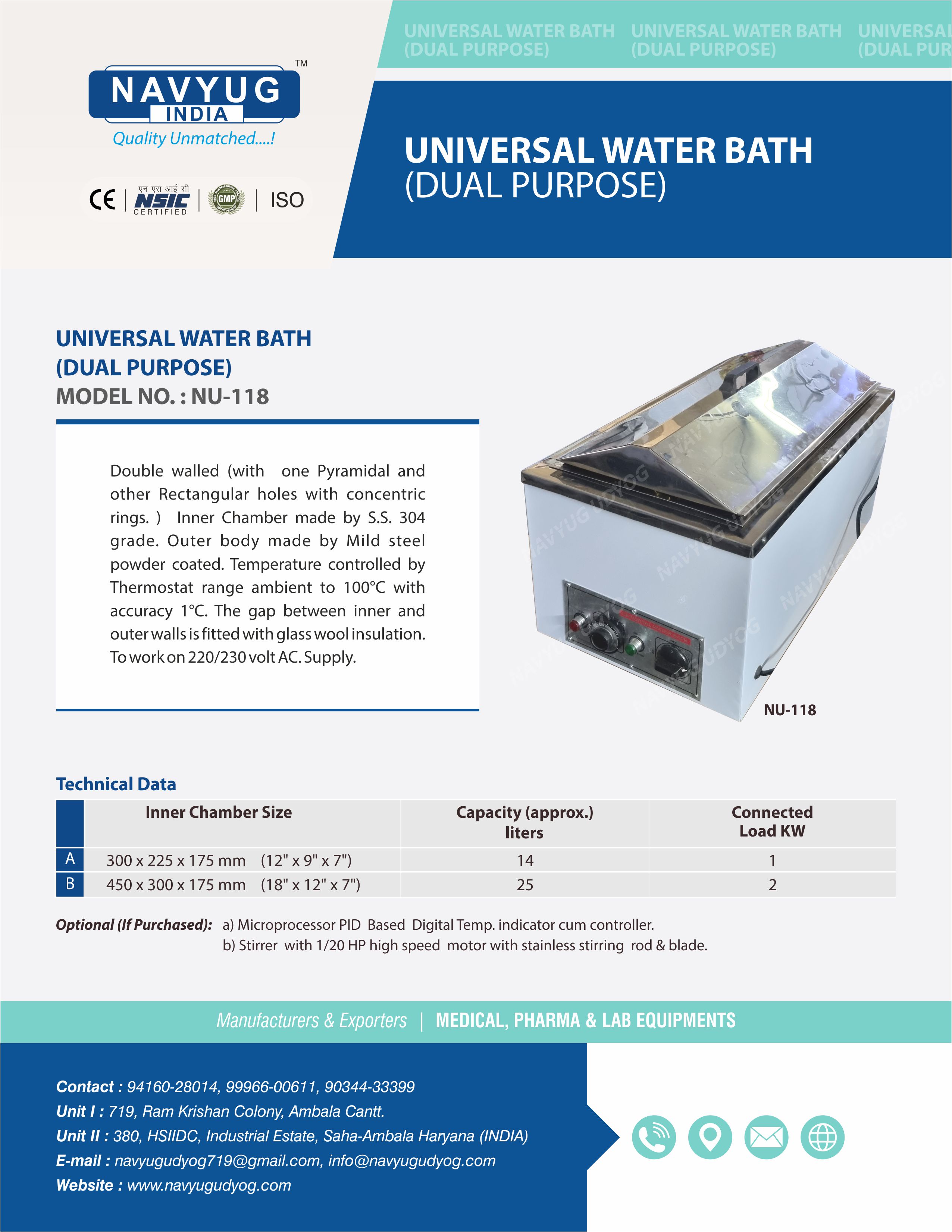

UNIVERSAL WATER BATH (DUAL PURPOSE) ( NU-118 )
Double walled (with one Pyramidal and other Rectangular holes with concentric rings.) Inner Chamber made by S.S. 304 grade. Outer body made by Mild steel powder coated. Temperature controlled by Thermostat range ambient to 100°C with accuracy 1°C. The gap between inner and outer walls is fitted with glass wool insulation. To work on 220/230 volt AC. Supply.
Technical Specifications | ||||
| Model No. | Inner Chamber size | Capacity (Approx.) Liters | Connected Load KW | |
| NU-118 A | 300 x 225 x 175 mm | ( 12" x 9" x 7" ) | 14 | 1.0 |
| NU-118 B | 450 x 300 x 175 mm | ( 18" x 12" x 7" ) | 25 | 2.0 |
| Optional : a) Microprocessor PID Based Digital Temp. indicator cum controller. b) Stirrer with 1/20 HP high speed motor with stainless stirring rod & blade. | ||||
