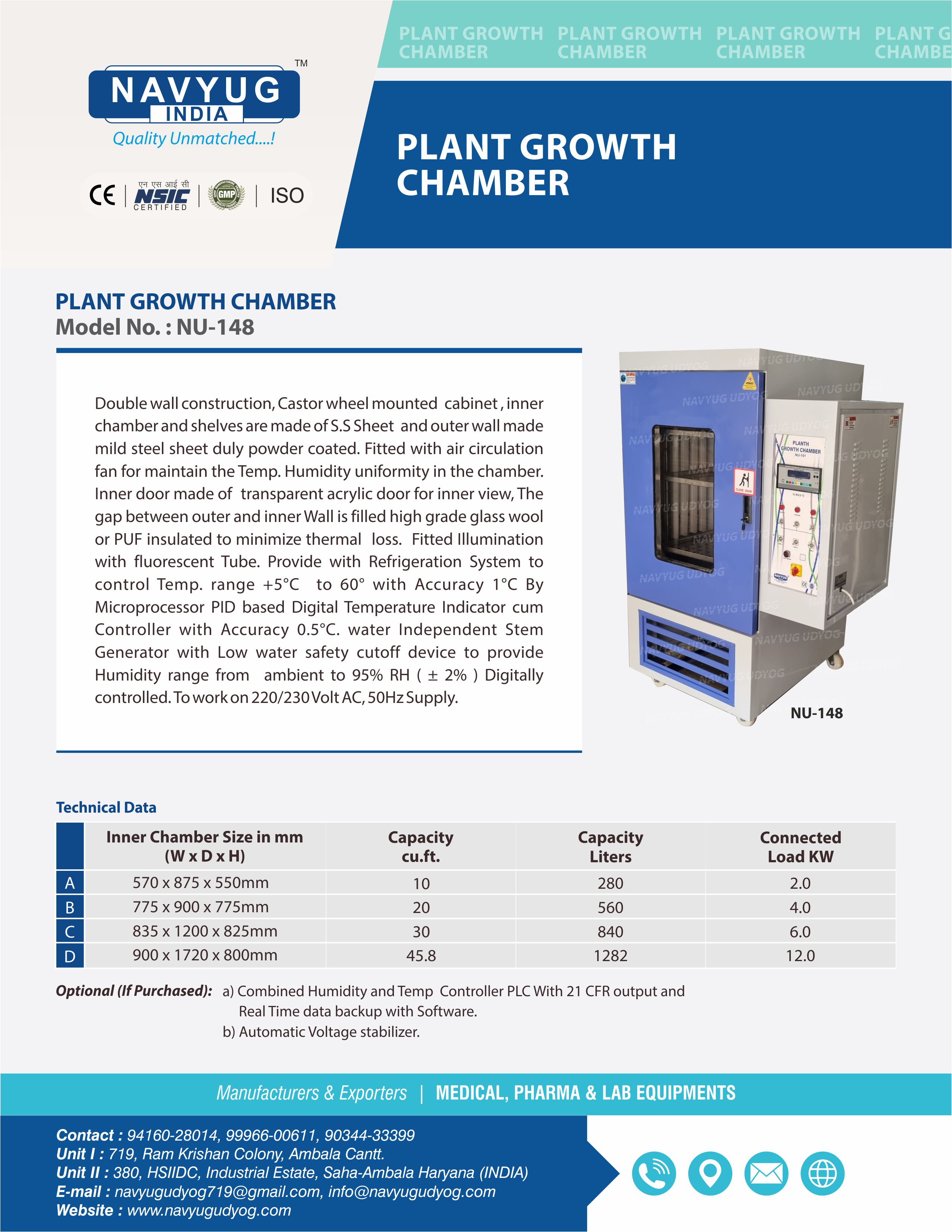

Double wall construction, Castor wheel mounted cabinet, inner chamber and shelves are made of S.S Sheet and outer wall made mild steel sheet duly powder coated. Fitted with air circulation fan for maintain the Temp. Humidity uniformity in the chamber. Inner door made of transparent acrylic door for inner view, The gap between outer and inner Wall is filled high grade glass wool or PUF insulated to minimize thermal loss. Fitted Illumination with fluorescent Tube. Provide with Refrigeration System to control Temp. range +5°C to 60° with Accuracy 1°C By Microprocessor PID based Digital Temperature Indicator cum Controller with Accuracy 0.5°C. water Independent Stem Generator with Low water safety cutoff device to provide Humidity range from ambient to 95% RH ( ± 2% ) Digitally controlled. To work on 220/230 Volt AC, 50Hz Supply.
Technical Specifications | |||
Model No. | Inner Size (W x D x H) | Capacity Liters | Capacity Cubic Feet |
NU-148 A | 570 x 875 x 550 mm | 280 | 10.0 |
NU-148 B | 775 x 900 x 775 mm | 560 | 20.0 |
NU-148 C | 835 x 1200 x 825 mm | 840 | 30.0 |
NU-148 D | 900 x 1720 x 800 mm | 1282 | 45.8 |
Optional : a) Combined Humidity and Temp Controller PLC With 21 CFR output and Real Time data backup with Software. b) Automatic Voltage Stabilizer. | |||
Note : Please ask for other capacities of your requirement. |
