Product Details

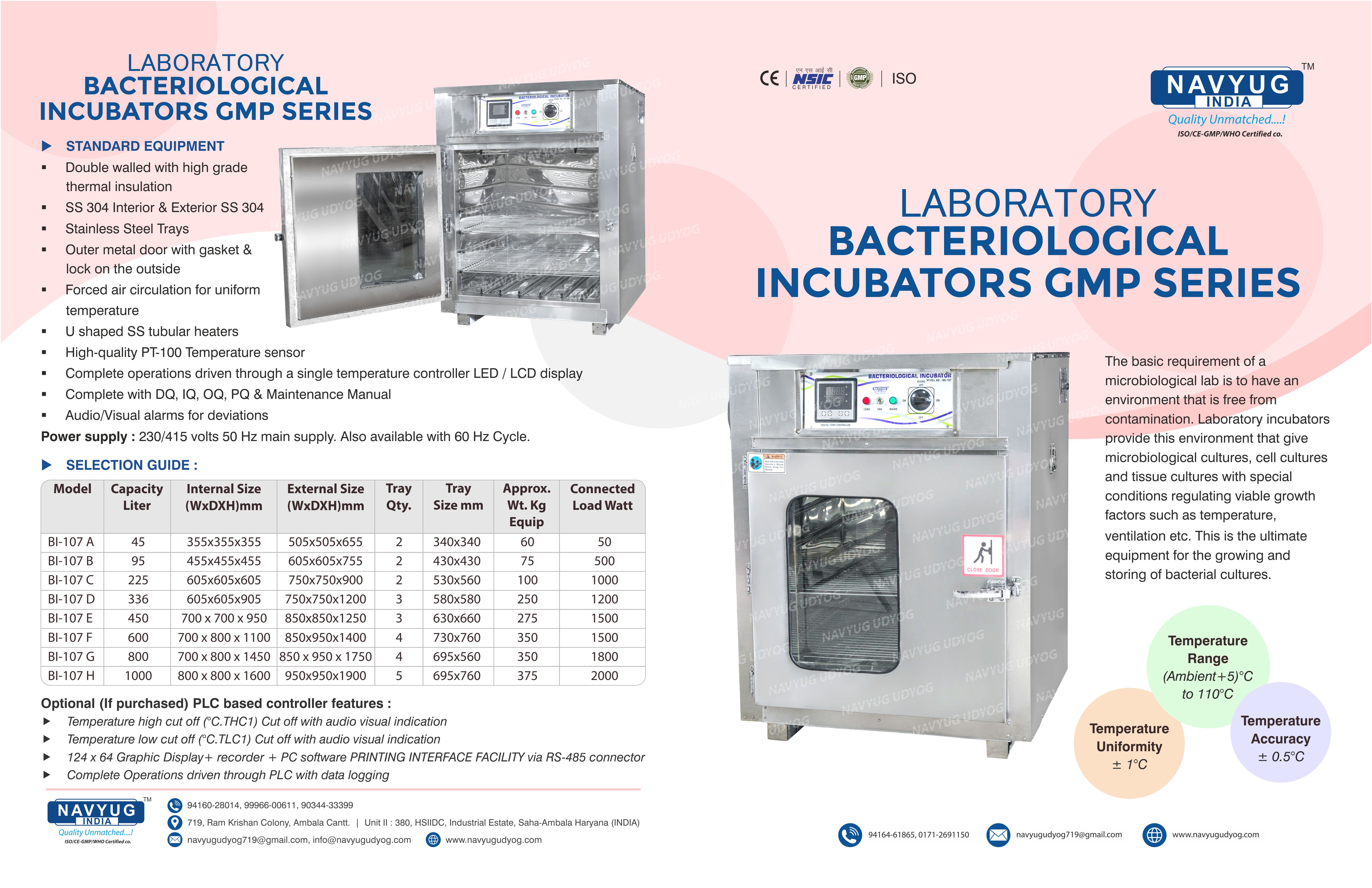

LABORATORY BACTERIOLOGICAL INCUBATORS GMP SERIES "NAVYUG" NU-107

The basic requirement of a microbiological lab is to have an environment that is free from contamination. Laboratory incubators provide this environment that give microbiological cultures, cell cultures and tissue cultures with special conditions regulating viable growth factors such as temperature, ventilation etc. This is the ultimate equipment for the growing and storing of bacterial cultures.

Temperature Range (Ambient+5)°C to 110°C   |   Temperature Uniformity ± 1°C
Temperature Accuracy ± 0.5°C

Standard Equipment

      >    Double walled with high grade thermal insulation      >    SS 304 Interior & Exterior SS 304
      >    Stainless Steel Trays      >    Outer metal door with gasket & lock on the outside
      >    Forced air circulation for uniform temperature      >    U shaped SS tubular heaters
      >    High-quality PT-100 Temperature sensor                  >    Complete with DQ, IQ, OQ, PQ & Maintenance Manual
      >    Complete operations driven through a single
            temperature controller LED / LCD display
      >    Audio/Visual alarms for deviations
      Power supply : 230/415 volts 50 Hz main supply. Also available with 60 Hz Cycle.



Optional (If purchased) PLC based controller features

      Temperature high cut off (°C.THC1) Cut off with audio visual indication
      Temperature low cut off (°C.TLC1) Cut off with audio visual indication
      124 x 64 Graphic Display + recorder + PC software PRINTING INTERFACE FACILITY via RS-485 connector
      Complete Operations driven through PLC with data logging



SELECTION GUIDE

      Model

Capacity Liter

Internal Size
(W x D x H)mm

External Size
(W x D x H)mm

Tray Qty.

Tray Size
mm

Approx. Wt.
Kg Equip.

Connected
Load Watt

      BI-107 A

45

355 x 355 x 355

505 x 505 x 655

2

340 X 340

60

50

      BI-107 B

95

455 x 455 x 455

605 x 605 x 755

2

430 X 430

75

500

      BI-107 C

225

605 x 605 x 605

750 x 750 x 900

2

530 X 560

100

1000

      BI-107 D

336

605 x 605 x 905

750 x 750 x 1200

3

580 X 580

250

1200

      BI-107 E

450

700 x 700 x 950

850 x 850 x 1250

3

630 X 660

275

1500

      BI-107 F

600

700 x 800 x 1100

850 x 950 x 1400

4

730 X 760

350

1500

      BI-107 G

800

700 x 800 x 1450

850 x 950 x 1750

4

695 X 560

350

1800

      BI-107 H

1000

800 x 800 x 1600

950 x 950 x 1900

5

695 X 760

375

2000

Customized Sizes Available
