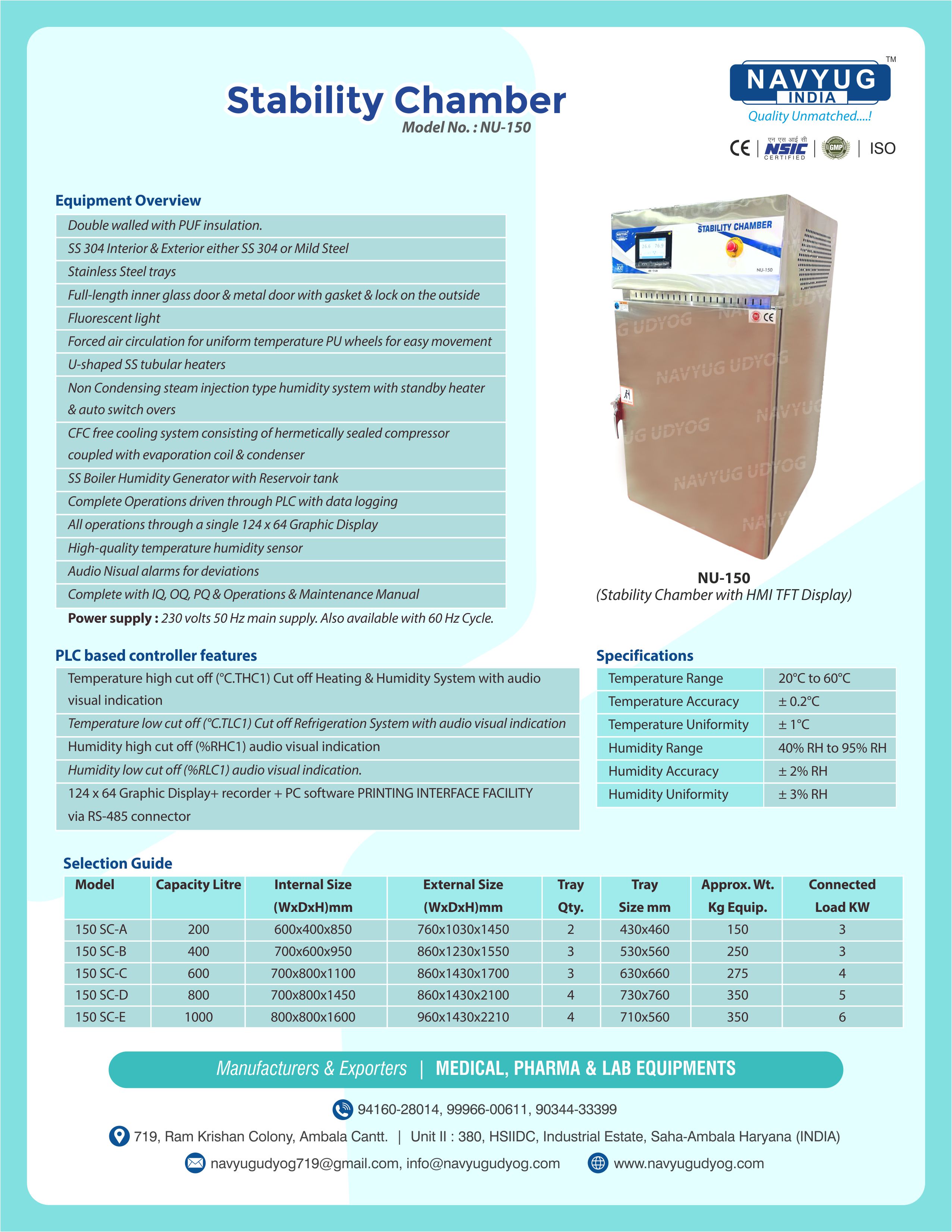

STABILITY CHAMBER WITH HMI TFT DISPLAY (NU-150)
PLC based controller features Temperature high cut off (°C.THC1) Cut off Heating & Humidity System with audio visual indication Temperature low cut off (°C.TLC1) Cut off Refrigeration System with audio visual indication Humidity high cut off (%RHC1) audio visual indication Humidity low cut off (%RLC1) audio visual indication. 124 x 64 Graphic Display + recorder + PC software PRINTING INTERFACE FACILITY via RS-485 connector
Equipment Overview |
| > Double walled with high grade thermal insulation | > SS 304 Interior & Exterior SS 304 |
| > Full-length inner glass door & metal door with gasket & lock on the outside | > Stainless Steel Trays |
| > Fluorescent light | > U-shaped SS tubular heaters |
| > Forced air circulation for uniform temperature PU wheels for easy movement | > SS Boiler Humidity Generator with Reservoir tank |
| > Non Condensing steam injection type humidity system with standby heater & auto switch overs | > Complete Operations driven through PLC with data logging |
| > CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser | > All operations through a single 124 x 64 Graphic Display |
| > High-quality temperature humidity sensor | > Complete with IQ, OQ, PQ & Operations & Maintenance Manual |
| > Audio Visual alarm for deviations | |
| Power supply : 230 volts 50 Hz main supply. Also available with 60 Hz Cycle. | |
Technical Specification |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.2°C |
| Temperature Uniformity | ± 1°C |
| Humidity Range | 40% RH to 95% RH |
| Humidity Accuracy | ± 2% RH |
| Humidity Uniformity | ± 3% RH |
Selection Guide |
| Model | Capacity Liter | Internal Size | External Size | Tray Qty. | Tray Size | Approx. Wt. | Connected |
| 150 SC-A | 200 | 600x400x850 | 760x1030x1450 | 2 | 430 x 460 | 150 | 3.0 |
| 150 SC-B | 400 | 700x600x950 | 860x1230x1550 | 3 | 530 x 560 | 250 | 3.0 |
| 150 SC-C | 600 | 700x800x1100 | 860x1430x1700 | 3 | 630 x 660 | 275 | 4.0 |
| 150 SC-D | 800 | 700x800x1450 | 860x1430x2100 | 4 | 730 x 760 | 350 | 5.0 |
| 150 SC-E | 1000 | 800x800x1600 | 960x1430x2210 | 4 | 710 x 560 | 350 | 6.0 |
Customized Sizes Available |
