Product Details

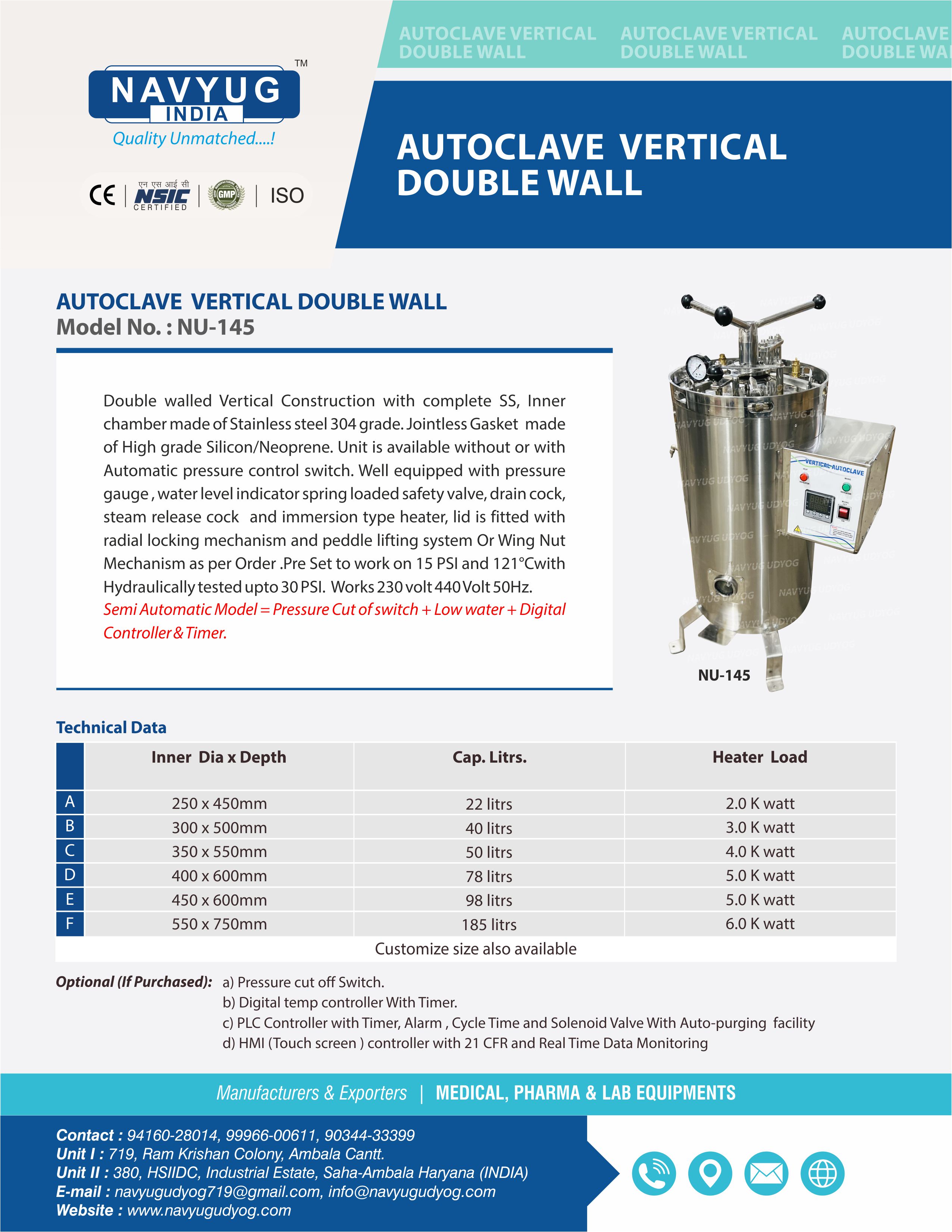

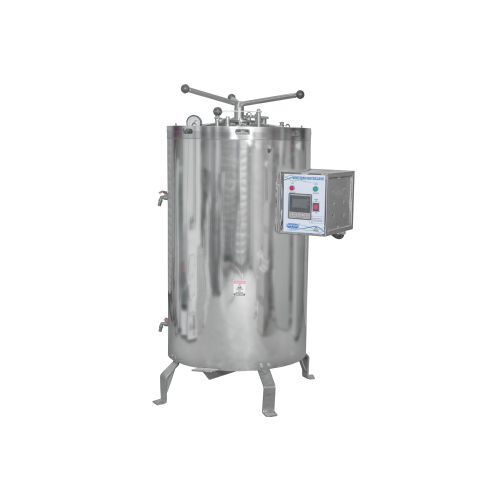

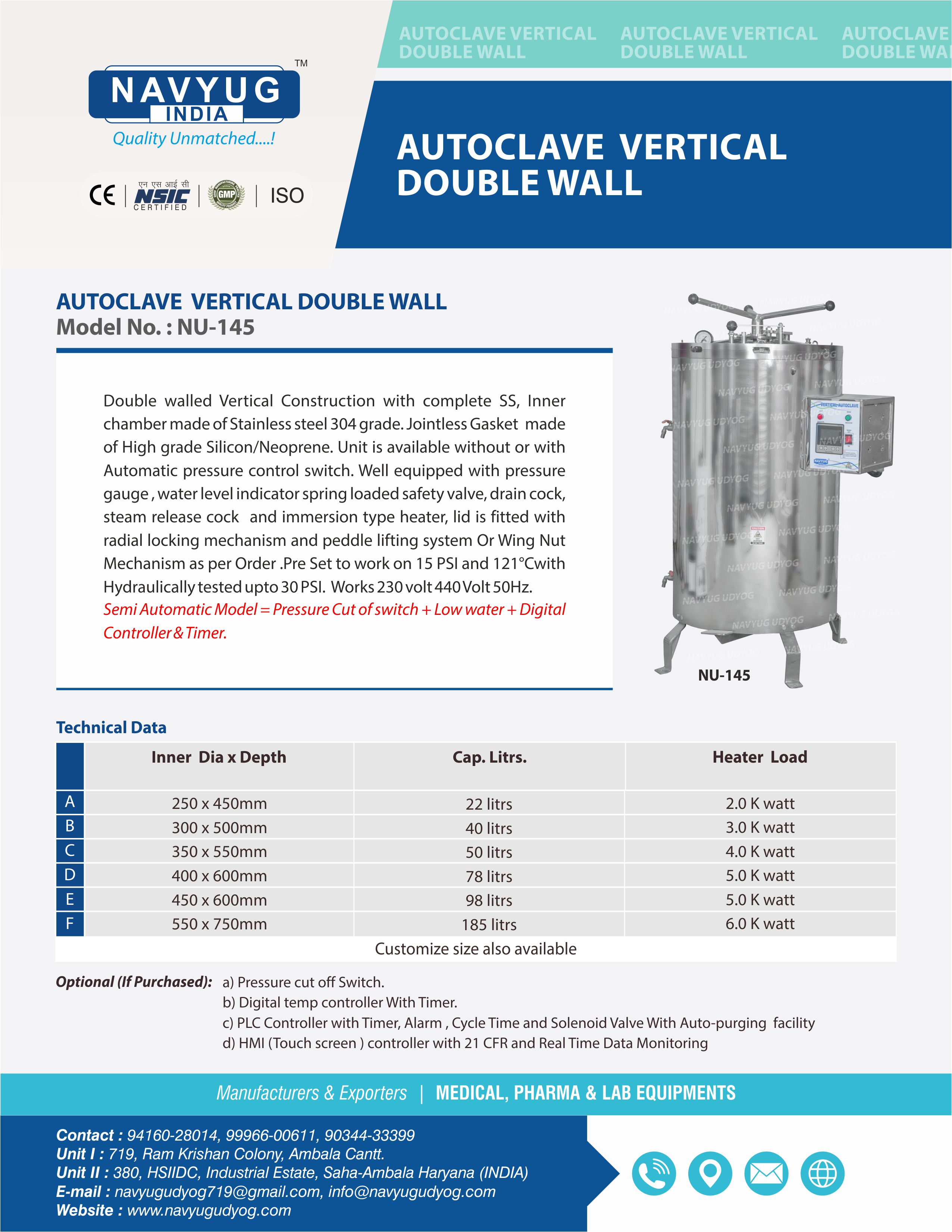

AUTOCLAVE VERTICAL DOUBLE WALL (NU-145)

Double walled Vertical Construction with complete SS , Inner chamber made of Stainless steel 304 grade. Jointless Gasket  made of High grade Silicon/Neoprene. Unit is available without or with Automatic pressure control switch. Well equipped with pressure gauge, water level indicator spring loaded safety valve, drain cock, steam release cock and immersion type heater, lid is fitted with radial locking mechanism and peddle lifting system Or Wing Nut Mechanism as per Order .Pre Set to work on 15 PSI and 121°Cwith Hydraulically tested upto 30 PSI. Works 230 volt 440 Volt 50Hz.

Semi Automatic Model = Pressure Cut of switch + Low water + Digital Controller & Timer.

Technical Specifications

      Model No.

Inner Dia. x Depth

Capacity Liters

Connected Load KW

      NU-145 A

250 x 450 mm

22

2.0

      NU-145 B

300 x 500 mm

40

3.0

      NU-145 C

350 x 550 mm

50

4.0

      NU-145 D

400 x 600 mm

78

5.0

      NU-145 E

450 x 600 mm

98

5.0

      NU-145 F

550 x 750 mm

185

6.0

      Optional : a) Pressure cut off Switch.
                          b) Digital temp controller With Timer.
                          c) PLC Controller with Timer, Alarm , Cycle Time and Pressure Indicator and Solenoid Valve With Auto-purging  facility.
                          d) HMI (Touch screen) controller with 21 CFR and Real Time Data Monitoring.
      Note : Please ask for other capacities of your requirement.
                  Customize size also available.
