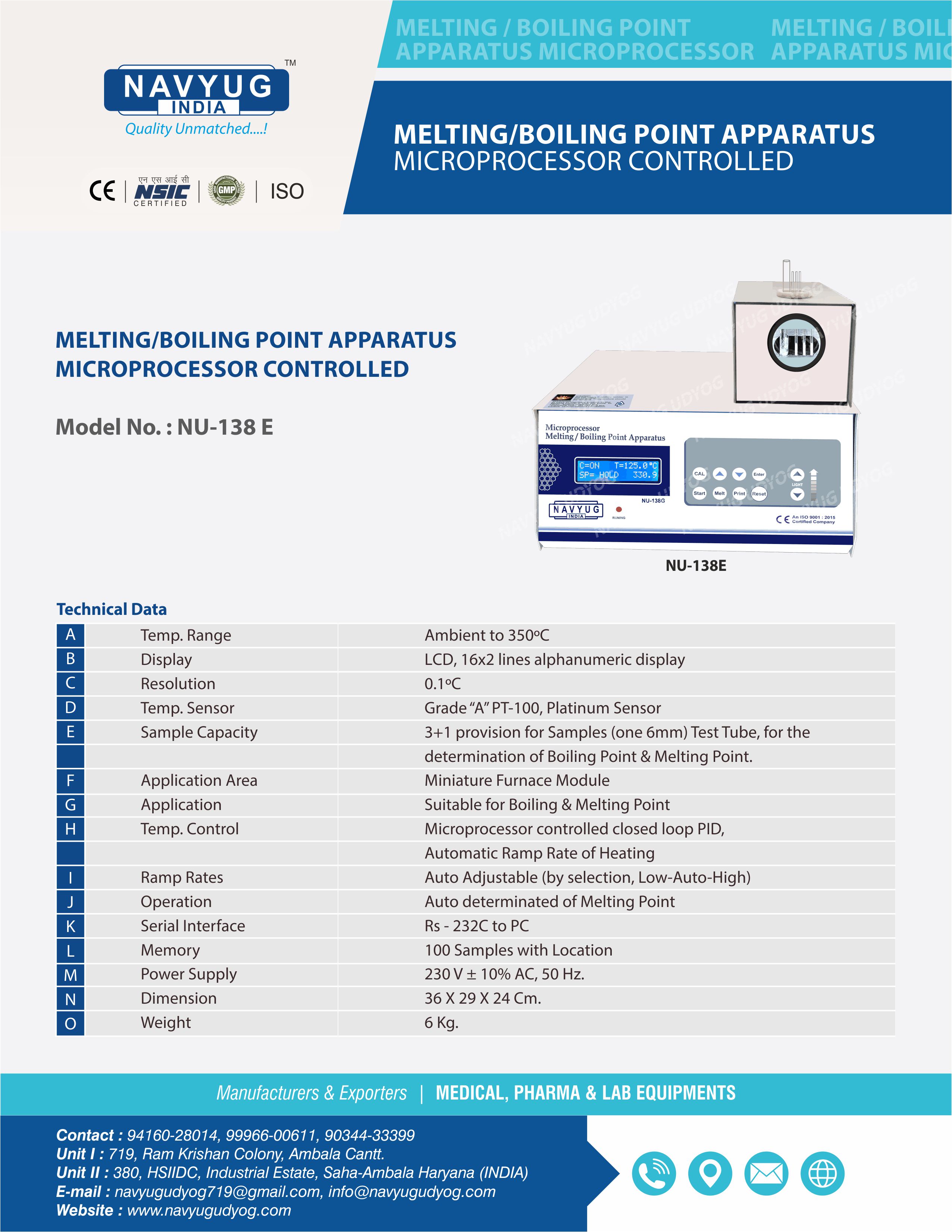

MELTING/BOILING POINT APPARATUS, MICROPROCESSOR CONTROLLED (NU-138 E)
Technical Specifications |
| Temp. Range | Ambient to 350ºC |
| Display | LCD, 16 x 2 lines alphanumeric display |
| Resolution | 0.1ºC |
| Temp. Sensor | Grade “A” PT - 100, Platinum Sensor |
| Sample Capacity | 3 +1 provision for Samples (one 6mm) Test Tube, for the determination of Boiling Point & Melting Point |
| Heating Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Temp. Control | Microprocessor controlled closed loop PID, Auto Ramp Rate Heating |
| Ramp Rates | Auto Adjustable (by se lection, Low-Auto-High) |
| Operation | Auto determination of Melting Point |
| Serial Interface | RS - 232C to PC |
| Memory | 100 Samples with Location |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 36 x 29 x 24 cm. |
| Weight | 6 Kg. |
