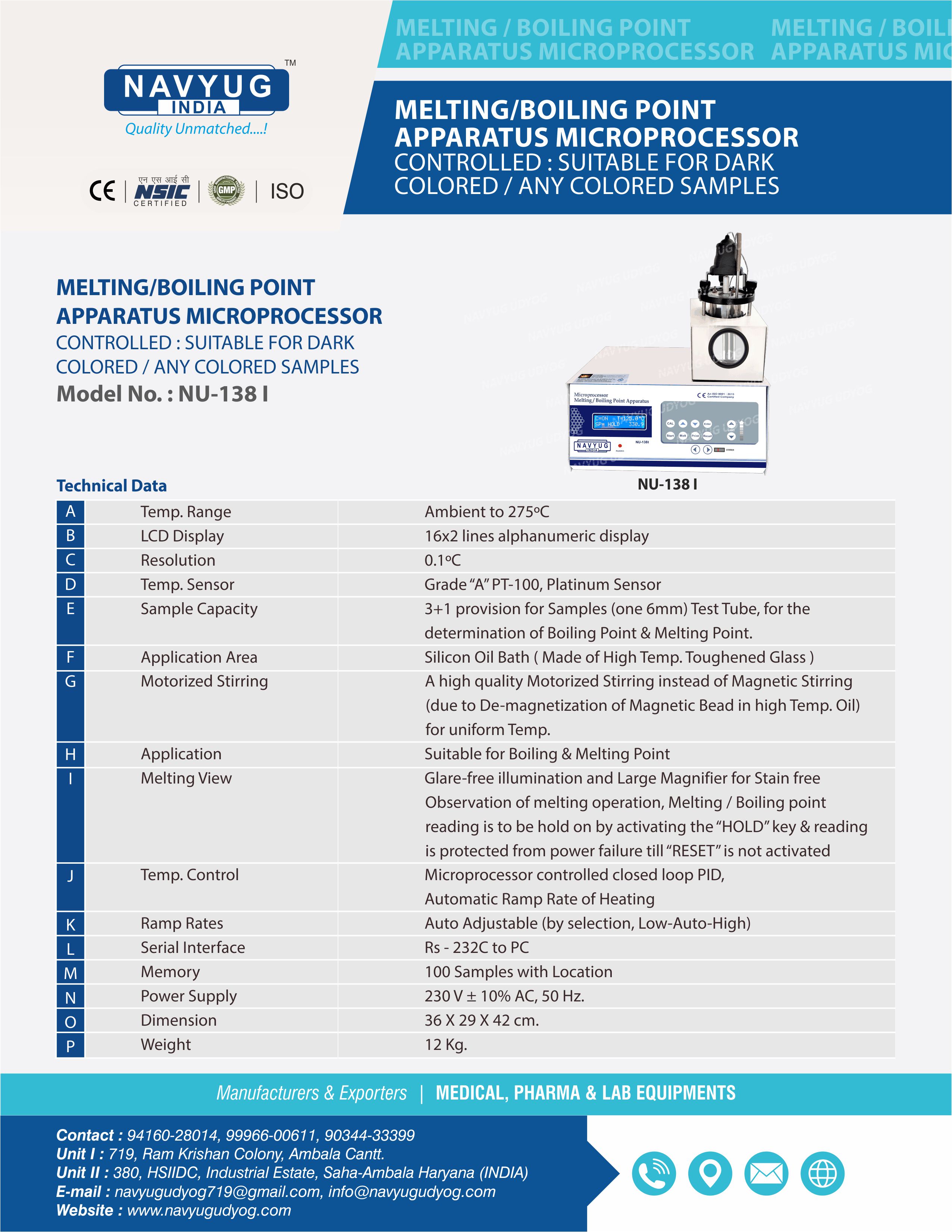

MELTING/BOILING POINT APPARATUS MICROPROCESSOR "NAVYUG" NU-138 I
Technical Specifications |
| Temp. Range | Ambient to 275°C |
| LCD Type | 16X2 lines Alphanumeric Display |
| Resolution | 1°C |
| Temp. Sensor | Grade "A" PT-100, Platinum Sensor |
| Sample Capacity | 3+1 provision for Samples (one 6mm) Test Tube, for the determination of Boiling Point & Melting Point. |
| Application Area | Silicon Oil Bath (Made of High Temp. Toughened Glass) |
| Motorized Stirring | A high quality Motorized Stirring instead of Magnetic Stirring (due to de-magnetization of Magnetic stirring Bead in high Temp. Oil) for uniform Temp. |
| Application | Suitable for Boiling & Melting Point |
| Melting View | Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting/Boiling point reading is to be hold on by activating the "HOLD" key & reading is protected from power failure till "RESET" is not activated. |
| Temperature Control | Microprocessor controlled closed loop PID, Automatic Ramp Rate of Heating. |
| Ramp Rates | Auto Adjustable (by selection, Low - Auto-High) |
| Serial Interface | Rs - 232C to PC |
| Memory | 100 Samples with Location |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 36 X 29 X 42 Cm. |
| Weight | 12 Kg. |
