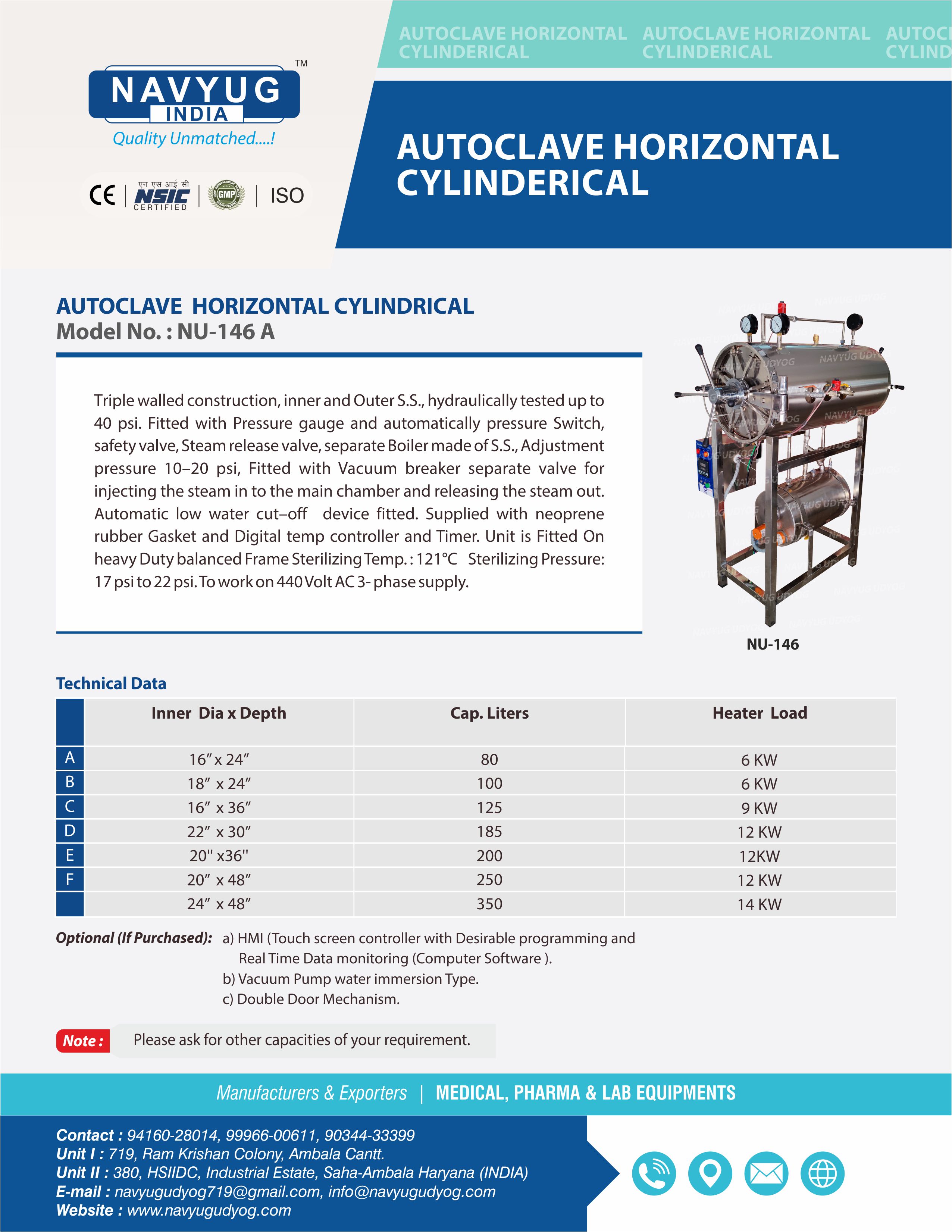

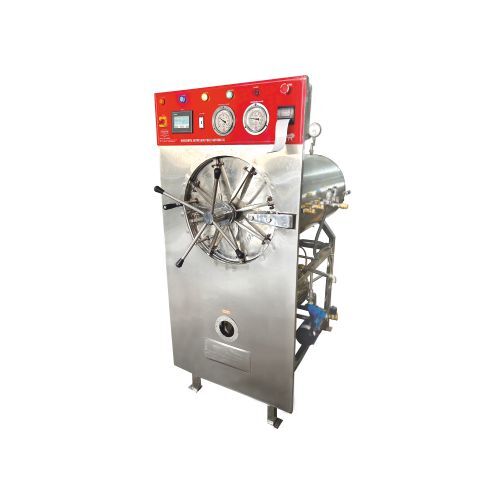

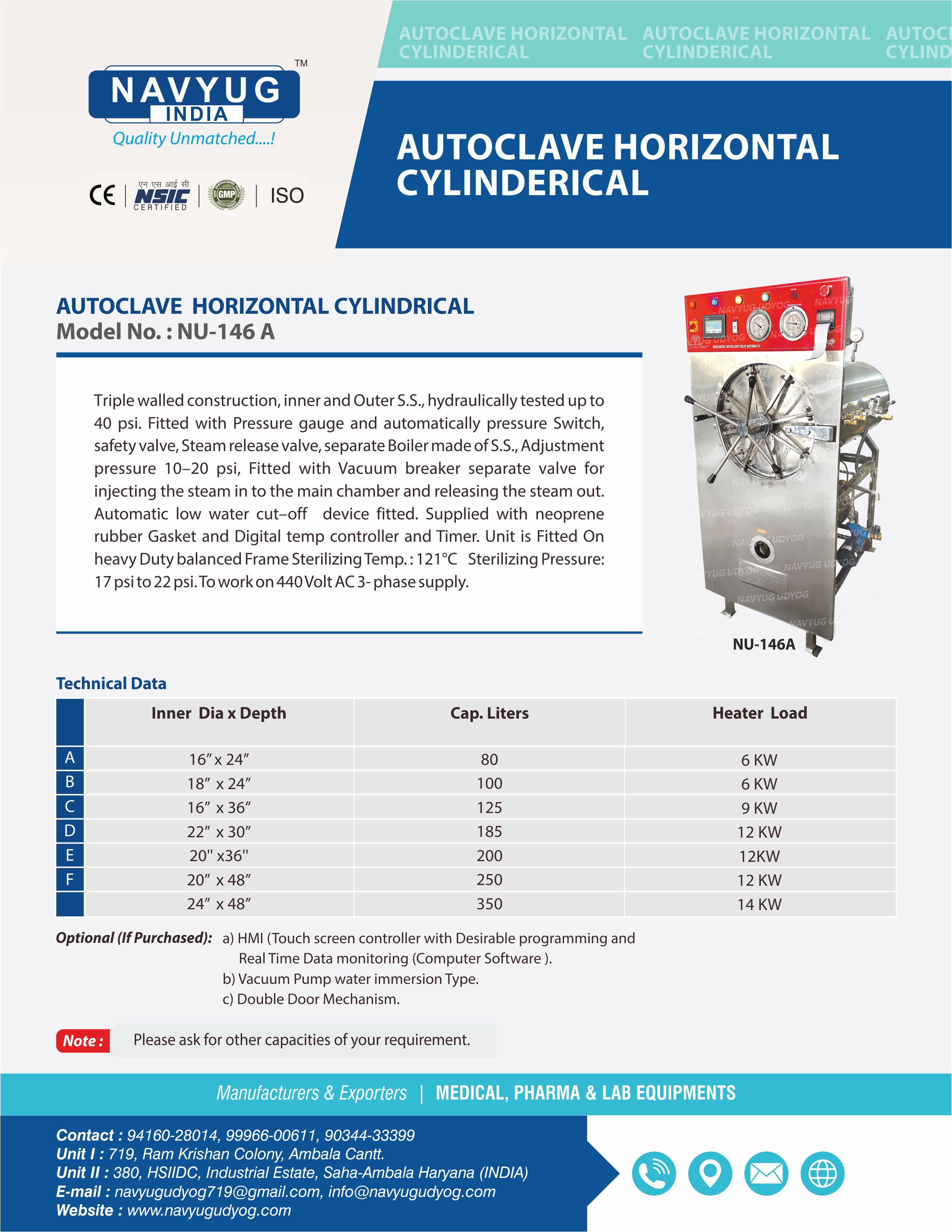

AUTOCLAVE HORIZONTAL CYLINDRICAL "NAVYUG" NU-146 A
Triple walled construction, inner and Outer S.S., hydraulically tested up to 40 psi. Fitted with Pressure gauge and automatically pressure Switch, safety valve, Steam release valve, separate Boiler made of S.S., Adjustment pressure 10–20 psi, Fitted with Vacuum breaker separate valve for injecting the steam in to the main chamber and releasing the steam out. Automatic low water cut–off device fitted. Supplied with neoprene rubber Gasket and Digital temp controller and Timer. Unit is Fitted On heavy Duty balanced Frame Sterilizing Temp.: 121°C Sterilizing Pressure : 17 psi to 22 psi. To work on 440 Volt AC 3-phase supply.
Technical Specifications | |||
| Model No. | Inner Dia. x Depth | Capacity | Connected Load KW |
| NU-146 A (A) | 16” x 24” | 80 | 6.0 |
| NU-146 A (B) | 18” x 24” | 100 | 6.0 |
| NU-146 A (C) | 16” x 36” | 125 | 9.0 |
| NU-146 A (D) | 22” x 30” | 185 | 12.0 |
| NU-146 A (E) | 20'' x 36'' | 200 | 12.0 |
| NU-146 A (F) | 20” x 48” | 250 | 12.0 |
| NU-146 A (G) | 24” x 48” | 350 | 14.0 |
| Optional : a) HMI(Touch screen controller with Desirable programming and Real Time Data monitoring (Computer Software). b) Vacuum Pump water immersion Type. c) Double Door Mechanism. | |||
| Note : Please ask for other capacities of your requirement. | |||
