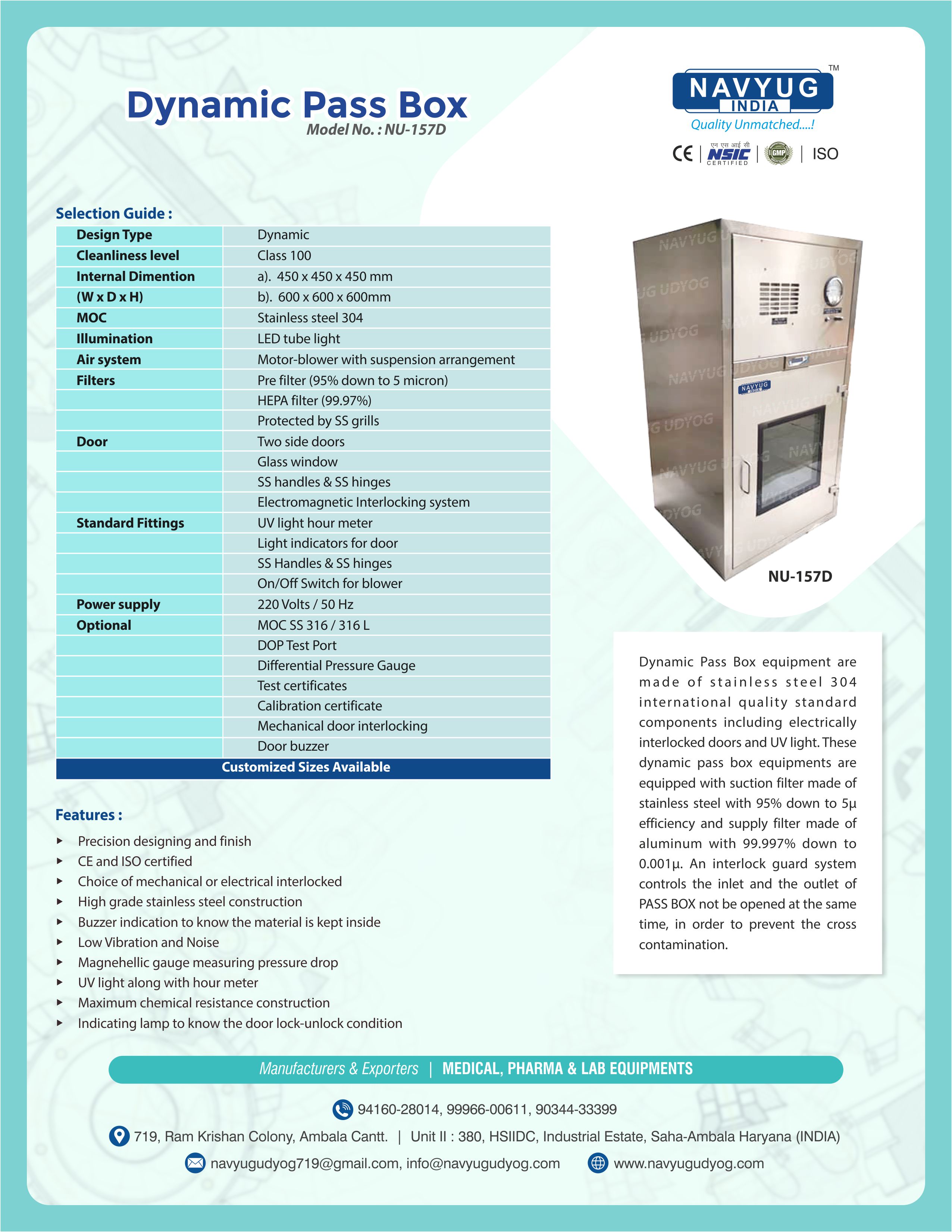

DYNAMIC PASS BOX GMP SERIES "NAVYUG" NU-157 D
Dynamic Pass Box equipment are made of stainless steel 304 international quality standard components including electrically interlocked doors and UV light. These dynamic pass box equipments are equipped with suction filter made of stainless steel with 95% down to 5µ efficiency and supply filter made of aluminum with 99.997% down to 0.001µ. An interlock guard system controls the inlet and the outlet of PASS BOX not be opened at the same time, in order to prevent the cross contamination.
FEATURES |
| > Precision designing and finish | > Low Vibration and Noise |
| > CE and ISO certified | > Magnehelic gauge measuring pressure drop |
| > Choice of mechanical or electrical interlocked | > UV light along with hour meter |
| > High grade stainless steel construction | > Maximum chemical resistance construction |
| > Buzzer indication to know the material is kept inside | > Indicating lamp to know the door lock-unlock condition |
SELECTION GUIDE |
| Design Type | Dynamic |
| Cleanliness level | Class 100 |
| Internal Dimension ( W x D x H ) | a) 450 x 450 x 450 mm b) 600 x 600 x 600 mm |
| MOC | Stainless steel 304 |
| Illumination | LED tube light |
| Air System | Motor-blower with suspension arrangement |
| Filters | Pre filter (95% down to 5 micron) HEPA filter (99.97%) Protected by SS grills |
| Door | Two side doors Glass window SS handles & SS hinges Electromagnetic Interlocking system |
| Standard Fittings | UV light hour meter Light indicators for door SS Handles & SS hinges On/Off Switch for blower |
| Power supply | 220 Volts / 50 Hz |
| Optional | MOC SS 316 / 316 L DOP Test Port Differential Pressure Gauge Test certificates Calibration certificate Mechanical door interlocking Door buzzer |
Customized Sizes Available |
