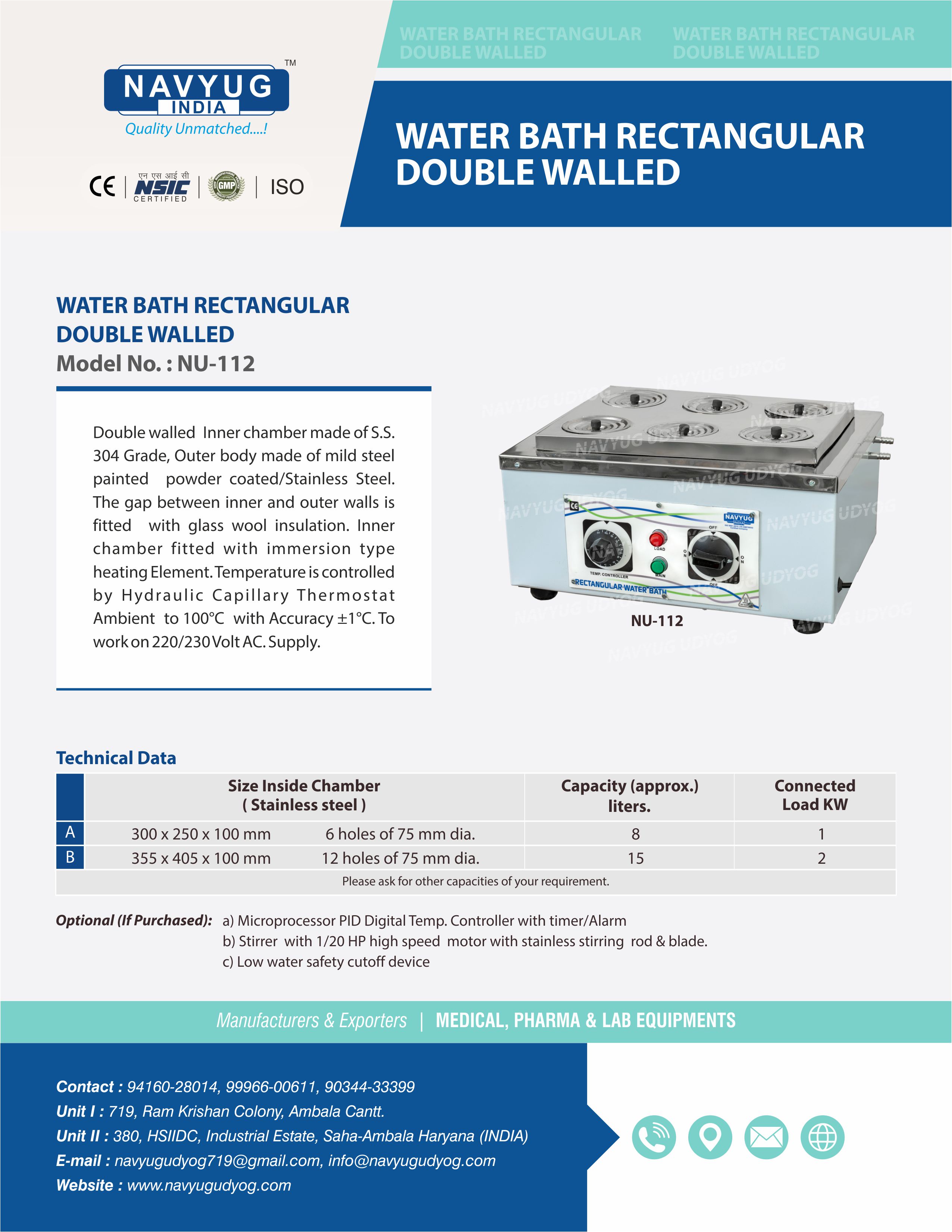

WATER BATH RECTANGULAR DOUBLE WALLED (NU-112)
Double walled Inner chamber made of S.S. 304 Grade, Outer body made of mild steel painted powder coated/Stainless Steel. The gap between inner and outer walls is fitted with glass wool insulation. Inner chamber fitted with immersion type heating Element. Temperature is controlled by Hydraulic Capillary Thermostat Ambient to 100°C with Accuracy ±1°C. To work on 220/230 Volt AC. Supply.
Technical Specifications | ||||
| Model No. | Size Inside ( Stainless Steel ) | Capacity Liters | Connected Load KW | |
| NU-112 A | 300 x 250 x 100 mm | 6 holes of 75 mm dia. | 8 | 1 |
| NU-112 B | 355 x 405 x 100 mm | 12 holes of 75 mm dia. | 15 | 2 |
| Optional : a) Microprocessor PID Digital Temp. Controller with timer/Alarm. b) Stirrer with 1/20 HP high speed motor with stainless stirring rod & blade. c) Low water safety cutoff device. | ||||
| Note : Please ask for other capacities of your requirement. GMP Model inner and outer ss complete also available. | ||||
