Product Details

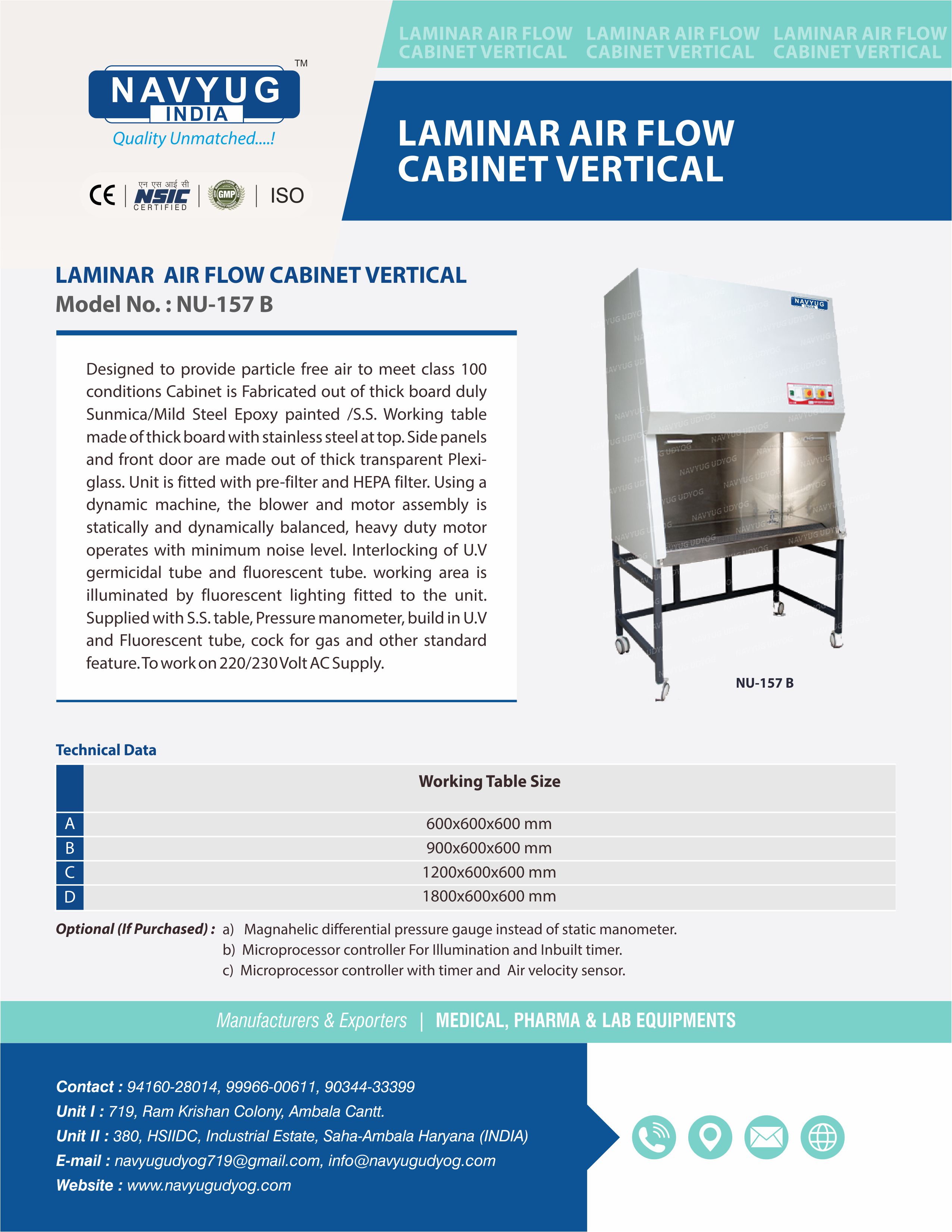

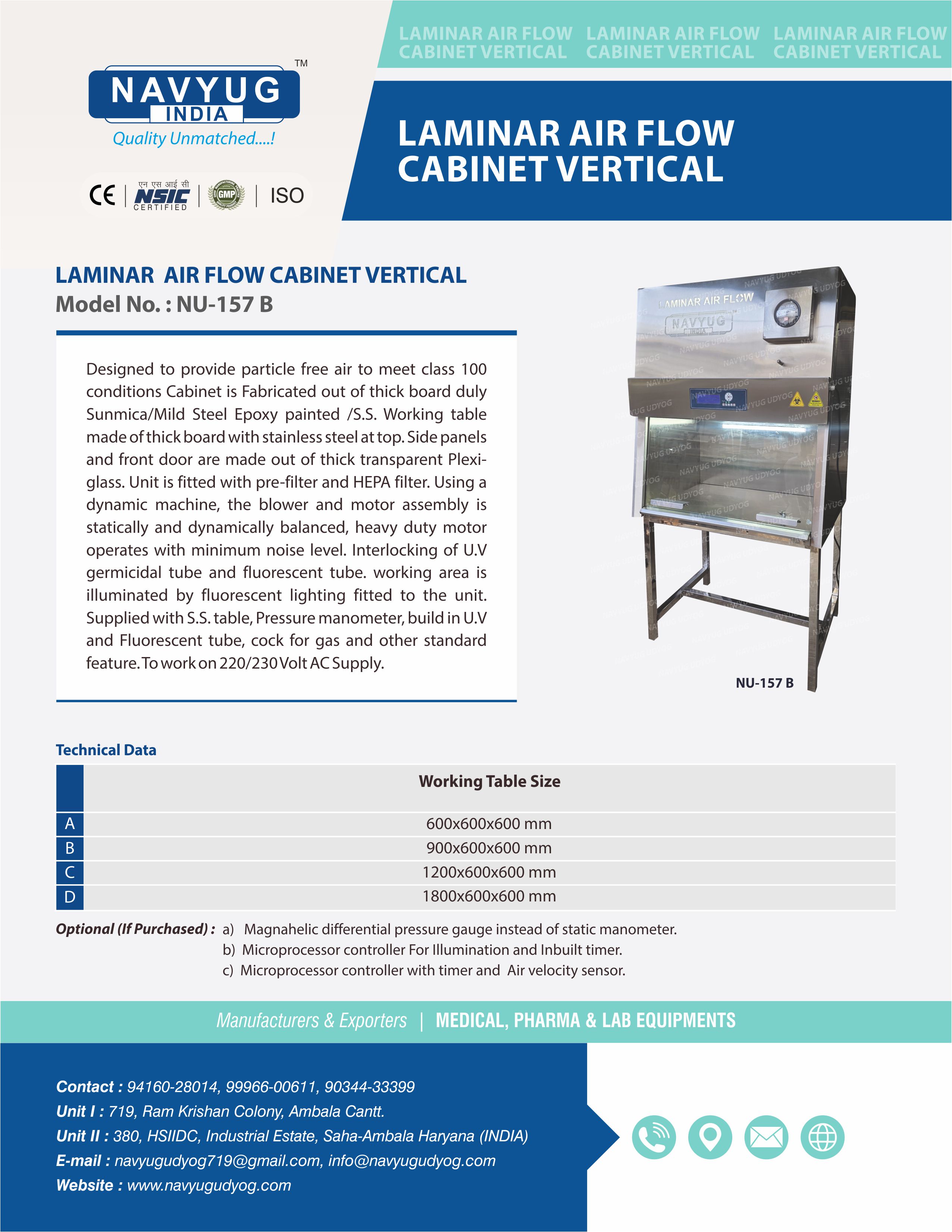

LAMINAR AIR FLOW CABINET VERTICAL "NAVYUG" NU-157 B

Designed to provide particle free air to meet class 100 conditions Cabinet is Fabricated out of thick board duly Sunmica/Mild Steel Epoxy painted /S.S. Working table made of thick board with stainless steel at top. Side panels and front door are made out of thick transparent. Plexi-glass. Unit is fitted with pre-filter and HEPA filter. Using a dynamic machine, the blower and motor assembly is statically and dynamically balanced, heavy duty motor operates with minimum noise level. Interlocking of U.V. germicidal tube and fluorescent tube. Working area is illuminated by fluorescent lighting fitted to the unit. Supplied with S.S. table, Pressure manometer, build in U.V and Fluorescent tube, cock for gas and other standard feature. To work on 220/230 Volt AC Supply.

Technical Specification

      Model No.

Working Table Size

      NU-157 B (A)

600 x 600 x 600 mm

      NU-157 B (B)

900 x 600 x 600 mm

      NU-157 B (C)

1200 x 600 x 600 mm

      NU-157 B (D)

1800 x 600 x 600 mm

      Optional : a) Magnehelic differential pressure gauge instead of static manometer.
                          b) Microprocessor controller For IIlumination and Inbuilt timer.
                          c) Microprocessor controller with timer and Air velocity sensor.
