Product Details

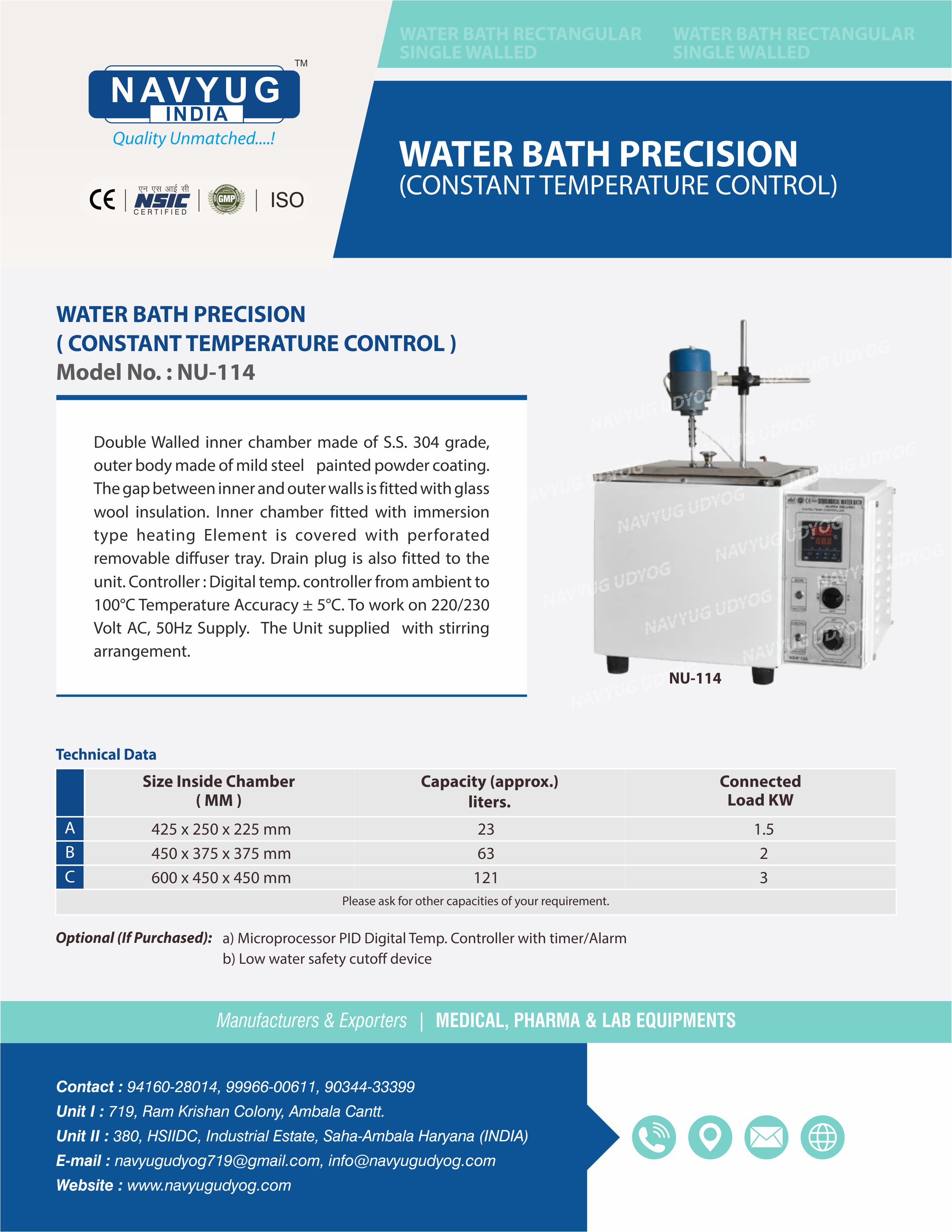

WATER BATH PRECISION (CONSTANT TEMPERATURE CONTROL) (NU-114)

Double Walled inner chamber made of 5.5. 304 grade, outer body made of mild steel painted powder coating. The gap between inner and outer walls is fitted with glass wool insulation, Inner chamber fitted with immersion type heating Element is covered with perforated removable diffuser tray. Drain plug is also fitted to the unit. Controller: Digital temp. controller from ambient to 100°C Temperature Accuracy ±5°C. To work on 220/230 Volt AC, 50Hz Supply. The Unit supplied with stirring arrangement.

Technical Specification

      Model No.

Inner Chamber Size

Cap. in Liters

Connected Load KW

      NU-114 A

425 x 250 x 225 mm

23

1.5

      NU-114 B

450 x 375 x 375 mm

63

2

      NU-114 C

600 x 450 x 450 mm

121

3

      Optional : a) Microprocessor PID Digital Temp. Controller with timer/Alarm.
                         b) Low water safety cutoff device.
