Product Details

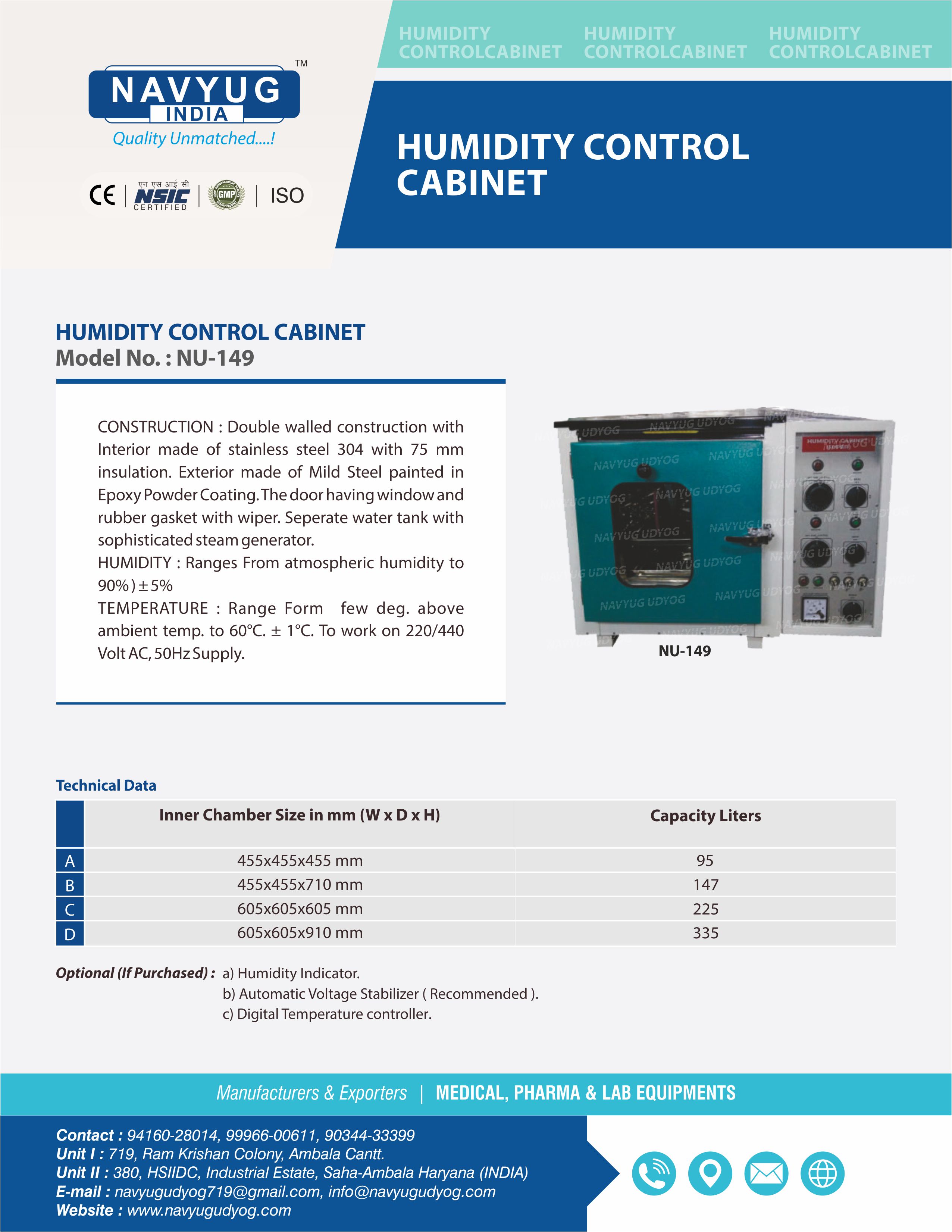

HUMIDITY CONTROL CABINET CONSTRUCTION "NAVYUG" NU-149

Double walled construction with Interior made of stainless steel 304 with 75 mm insulation. Exterior made of Mild Steel painted in Epoxy Powder Coating. The door having window and rubber gasket with wiper. Seperate water tank with sophisticated steam generator.
HUMIDITY: Ranges From atmospheric humidity to 90%) ±5%
TEMPERATURE: Range Form few deg. above ambient temp. to 60°C. ± 1°C. To work on 220/440 Volt AC, 50Hz Supply.

Technical Specifications

      Model No.

Inner Size (W x D x H)

Capacity Liters

      NU-149 A

455 x 455 × 455mm

95

      NU-149 B

455 x 455 x 710mm

147

      NU-149 C

605 x 605 x 605mm

225

      NU-149 D

605 x 605 x 910mm

335

      Optional : a) Humidity Indicator.
                          b) Automatic Voltage Stabilizer (Recommended).
                          c) Digital Temperature controller.
